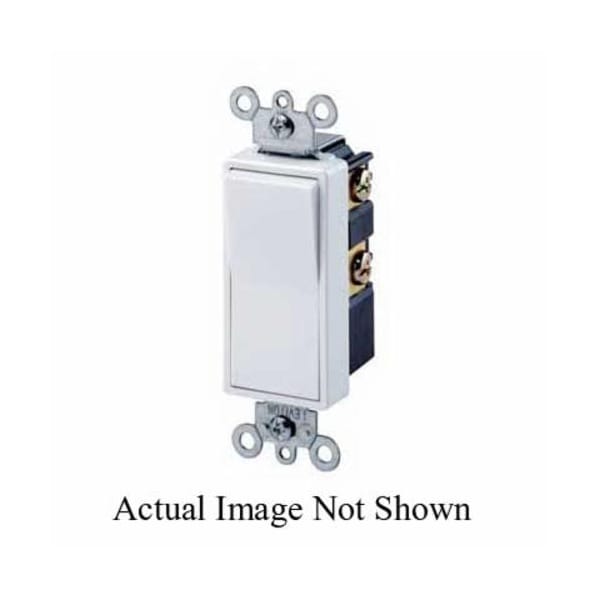

Wall Switch, 4-Way, 120/277V, 15A, Gry, Rockr
| Item | Wall Switch |
|---|---|
| Switch Type | 4-Way |
| Switch Style | Rocker |
| Switch Function | Maintained |
| Amps AC | 15 A |
| Color | Gray |
| Voltage AC | 120 to 277 |
| Locking | No |
| Wiring Method | Side |
| Application Environment | General Purpose |
| Length | 1.69 in |
| Height | 4.19 in |
| Standards | UL/CSA/NOM |
| Connection | Quickwired Push-In;Side Wired |
| Width | 1.62 in |
| Type | Switch |
| Number of Poles | 2 |
| Voltage | 120/277 VAC |
| Rated HP | 0.5 |
| Antimicrobial | No |
| Max. Amperage | 12 A |
| Pole | 4 |
| Actuator Material | Thermoplastic |
| Grounding | Grounded |
| HP Rating | 1/2HP-120V 2HP-240V-277V |
| Termination | Side Wire, Back Wire |
| Strap Material | Steel |
| Standards and Certifications | UL, CSA |
| Amperage | 15 A |
| Body Material | Thermoplastic |
| Torque Range | 14 "- 18 in.-lbs |
| Contact Rating | 120/277 VAC;15 AMP |
| Application | Residential |
| Dimensions | 4.2 in x 1.3 in x 0.99 in |
| Power Rating | 0.5 HP, 2 HP |
| Terminal Type | Quick-Wire, Push-In/Side Wired |
| Standard | UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057) |
| Operating Temperature | -40 to +120 °C |
| Action | ON/OFF |
| Environmental Conditions | Flammability (Rated UL 94 V-2) |
| Mounting | Wallplate |
| Package Quantity | 1 |
