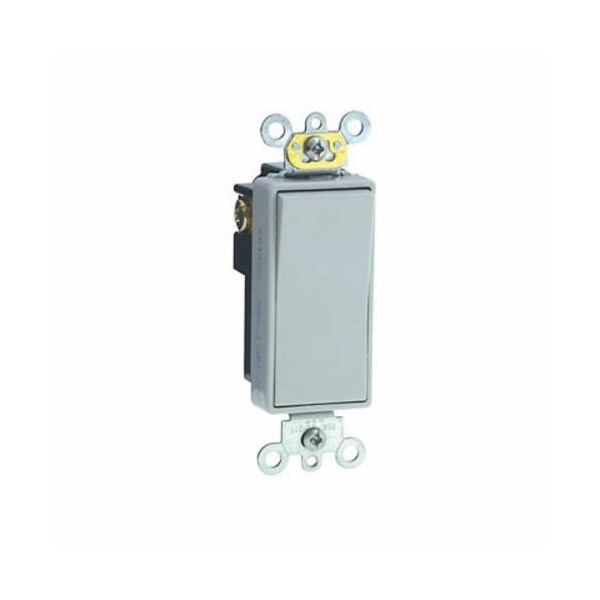

El interruptor de pared Leviton de 1 polo es ideal para voltajes de 120/277V y corriente de 20A. Diseñado en color gris con balancín para un uso sencillo y duradero.
| Item | Wall Switch |
|---|---|
| Switch Type | 1-Pole |
| Switch Style | Rocker |
| Amps AC | 20 A |
| Color | Gray |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | Commercial |
| Width | 1.62 in |
| Length | 1.69 in |
| Height | 4.19 in |
| Standards | NEMA: WD-1 and WD-6, ANSI: C-73, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057 |
| Connection | Back Wired;Side Wired |
| Antimicrobial | No |
| Grade | Commercial Specification Grade |
| Voltage | 120/277 VAC |
| Description/Special Features | Quiet Switch |
| Number of Poles | 1 |
| Rated HP | 1 |
| Temperature Rise | Maximum 30 degrees C rise |
| UL Standard | UL 20 |
| HP Rating | 1HP-120V 2HP-240V-277V |
| NEMA | WD-1, WD-6 |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| ANSI | C-73 |
| Grounding | Self-Grounding |
| Device Type | Switch |
| Body Material | Thermoplastic |
| Max. Amperage | 16 A |
| Termination | Back, Side Wire |
| Operating Temperature | -40°C to 65°C |
| Amperage | 20 A |
| Actuator Material | Thermoplastic |
| Function | Single-Pole |
| Endurance | 50,000 cycles minimum |
| Flammability | Rated V-2 per UL 94 |
| Strap Material | Steel |
| Screw Terminal Torque | 14-18 in-lbs |
| Dielectric Voltage | Withstands 1500V for 1 minute |
| Terminal Accom. | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Environmental Conditions | Flammability (Rated UL 94 V-2) |
| Contact Rating | 120/277 VAC;20 AMP |
| Mounting | Box |
| Standard | UL Listed (E-7458);CSA Certified (LR 3413);NOM Certified (057);Federal Specification (WS-896) |
| Size | 46 H x 1.76 W x 1.60 D in |
| Package Quantity | 1 |
