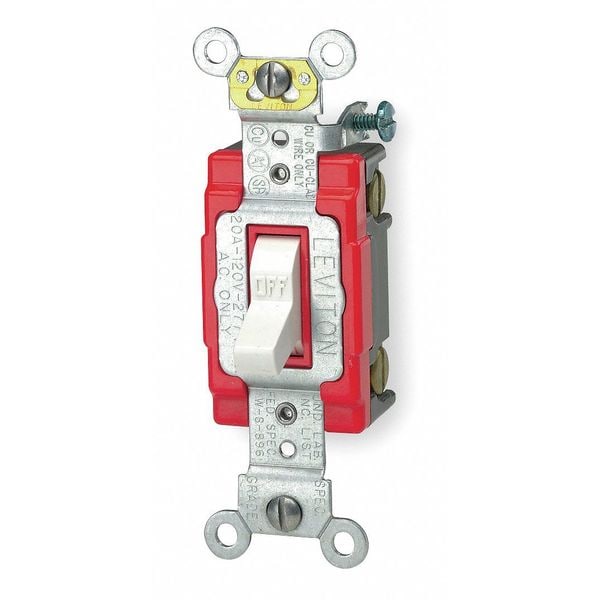

Interruptor de pared, 1 polo, 120/277V, 20A, color blanco, palanca alternada.
| Item | Wall Switch |
|---|---|
| Switch Type | Single Pole |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | White |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Side, Back |
| Application Environment | Industrial |
| Rated HP | 1 |
| Standards | ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94, RoHS Compliant |
| Antimicrobial | No |
| Description/Special Features | Quiet Switch |
| Voltage Rating | 120/277V AC |
| Features | 10 Year Limited |
| Current Rating | 20 A |
| For Environment | Industrial |
| Horsepower Rating | 2 hp |
| Grounding | Grounded |
| Maximum Operating Temperature | 149 Degrees F |
| Wire Connection Type | Screw Terminals |
| Overall Height | 4.1 in |
| Strap Material | Steel |
| Minimum Operating Temperature | -40 Degrees F |
| Market | Commercial, Industrial |
| Contact Material | Silver Alloy |
| Housing Material | Thermoplastic |
| Switch Height | 2.1 in |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| Locking Style | Not Applicable |
| Switch Depth | 1 in |
| Overall Width | 1.3 in |
| Mount Hole Center-to-Center Height | 2.4 in |
| Pilot Light | No |
| Illuminated | No |
| Number of Switches | 1 |
| Nightlight | No |
| Package Quantity | 1 |
