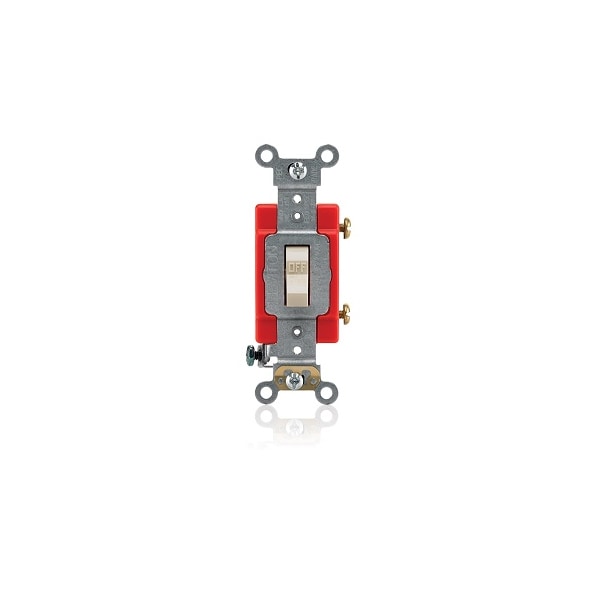

Wall Swtch, 3-Way, 120/277V, 20A, Ivry, Toggl
| Item | Wall Switch |
|---|---|
| Switch Type | 3-Way |
| Switch Function | Maintained |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | Ivory |
| Voltage AC | 120 to 277 |
| Locking | No |
| Wiring Method | Back, Side |
| Application Environment | Commercial |
| Height | 4.19 in |
| Width | 1.62 in |
| Voltage | 120/277 VAC |
| Standards | UL Standard, CSA, NOM |
| Number of Poles | 1 |
| Type | Switch |
| Rated HP | 1 to 2 |
| Length | 1.69 in |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Antimicrobial | Yes |

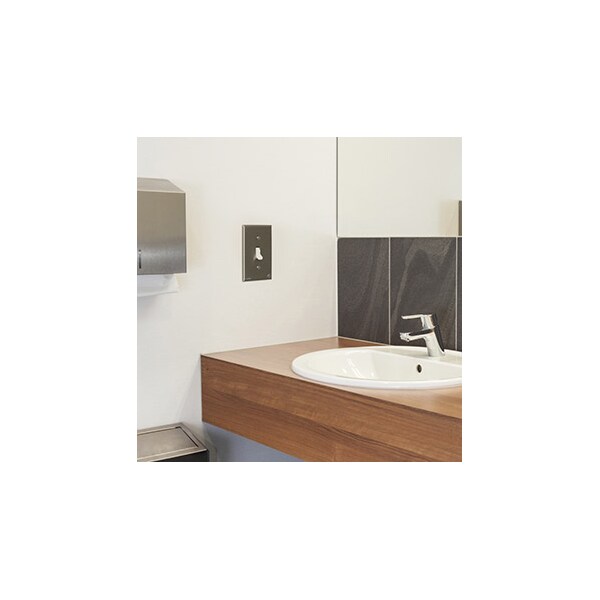

| Application | Healthcare Facilities |
| NEMA | WD-1, WD-6 |
| Terminal Accom. | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Base Material | Thermoplastic |
| Terminal Screws | Brass 8-32 |
| UL Fed Spec WS896E | File #E7458 |
| Device Type | Switch |
| Feature | Antimicrobial |
| ISO 22196 | Measurement of Antibacterial Activity on Plastics and Other Non-Porous Surfaces |
| Amperage | 20 A |
| Temperature Rise | Maximum 30 degrees C rise |
| Operating Temperature | -40°C to 65°C |
| Toggle | Antmicrobial Urea |
| Cover Material | Thermoplastic |
| Flammability | Rated HB or better UL94 |
| Screw Terminal Torque | 14-18 in-lbs |
| Overload UL20 Test | 100 cycles of OL at 4.8 times rated current |
| UL Standard | UL 20 |
| Ground Clips | Brass |
| AC Horsepower Ratings | 1HP-120V 2HP-240V, 16A Max |
| Endurance | 50,000 cycles minimum |
| Function | 3-Way |
| Termination | Back, Side Wire |
| Grounding Screw | Steel 8-32 |
| Storage Temperature | -40ºC to 65ºC |
| Grounding | Self-Grounding |
| Strap Material | Galvanized Steel |
| Terminal ID | Brass-Hot Black-Hot White-Neutral Green-Gnd |
| Dielectric Voltage | Withstands 1500V for 1 minute |
| Contacts | Silver-Alloy |
| Power Rating | 800 W, 1,000 VA |
| Terminal Type | Back/Side Wired |
| Environmental Conditions | -40 to 65 deg C Operating/Storage Temperature |
| Dimensions | 4.06 in H x 1.31 in W |
| Standard | UL 514D |
| Operating Cycles | 50000 |
| Enclosure | NEMA WD-1, WD-6 |
| Package Quantity | 1 |
