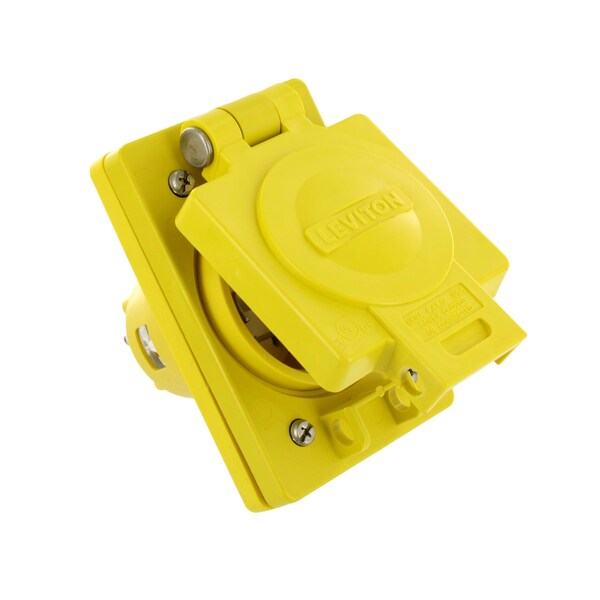

Cajas resistentes a la intemperie L23-30P Conector a prueba de agua.
| Item | Electrical Box |
|---|---|
| Box Type | Outlet Box |
| Voltage | 347/600 VAC |
| Length | 10-7/8 in |
| Color | Yellow |
| Phase | 3-Phase WYE |
| Height | 4.69 in |
| Voltage Rating | 347/600 |
| NEMA Rating | NEMA L23-30P |
| Material | Valox |
| Enclosure Rating | NEMA 4, 4X, 12 IEC IP66 |
| Application | Industrial |
| Wire | 5 |
| Operating Temperature | -40°C to 60°C |
| Terminal Screws | Electroless Nickel-coated Brass |
| UL | 498 |
| Environment | Wet |
| Wiring Module Mounting Cup | Valox PBT |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wiring Module | Nylon |
| Grounding | Grounded |
| Device Type | Inlet |
| Current Limiting | Full Rated Current |
| Blades/Contacts, Terminal Clamps | Electroless Nickel-coated Brass |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Flammability | Rated V-2 per UL 94 (wiring module) |
| Pole | 4 |
| CSA | C22.2 No. 42 |
| Amperage | 30 A |
| Terminal Accom. | #12 AWG to #8 AWG |
| Cover Gasket | Santoprene TPV |
| Torsion Spring Mechanism | Stainless Steel |
| Mounting & Assembly Screws | Stainless steel, non-magnetic |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Cover/Lid | Valox PBT |
| ANSI | C-73 |
| Screw Terminal Torque | 12-14 in-lbs |
| NEMA | WD-6 |
| Enclosure | IP66, 12, NEMA 4/4X |
| Amperage Rating | 30 |
| Standard | IP66 Rated |
| Terminal Type | Screw, Clamp |
| Temperature Rating | -40 to 60 |
| Grade | Industrial |
| Dimensions | 4.63 in x 3.13 in x 3.64 in |
| Package Quantity | 1 |
