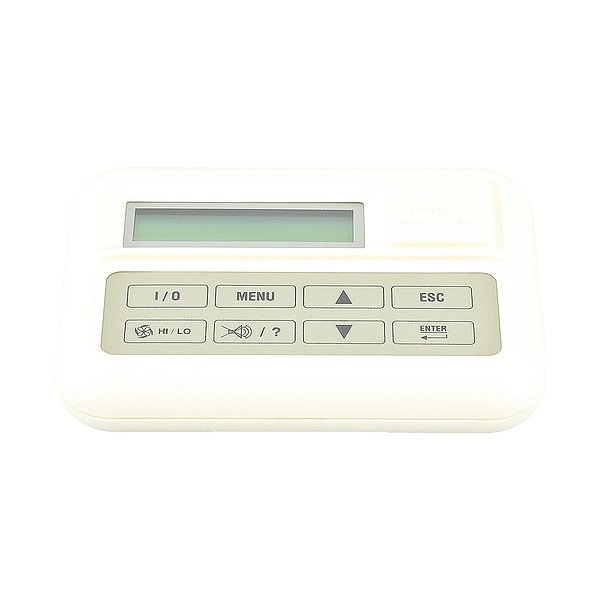

Low Voltage Thermostat, 24V, 60 Hz, Plastic
| Terminal Designations | Not Applicable |
|---|---|
| Humidification Control | Yes |
| Voltage | 24V |
| Standards | Not Applicable |
| Includes | Not Applicable |
| Control Type | Push Button |
| Dual Transformer Compatible | No |
| Temporary Program Override | No |
| Dehumidification Control | Yes |
| Display Type | Digital |
| Item | Low Voltage Thermostat |
| Temperature Limiting | Yes |
| Key Pad Lockout | Yes |
| Temporary Temperature Hold | No |
| Product Type | Low Voltage Thermostat |
| Changeover Type | Automatic |
| Temperature Scale | Fahrenheit, Celsius |
| Battery Type | Not Applicable |
| Application | Cool, Heat |
| Number of Cooling Stages - Heat Pump System | 1 |
| Backlit Type | Not Applicable |
| Millivolt Compatible | Not Applicable |
| Lead Wire Gauge | Not Applicable |
| Capillary Length | Not Applicable |
| Number of Poles | Not Applicable |
| Compatible System Type | Heat Pump without Aux |
| System Settings | Auto |
| Contact Rating | Not Applicable |
| Thermostat Type | Low Voltage |
| Maximum Operating Temperature | Not Applicable |
| Differential Type | Adjustable |
| Overall Height | 3 in |
| Digit Size | Standard |
| Maximum Operating Humidity | Not Applicable |
| Electrical Connection Type | Hardwired |
| Sensor Length | Not Applicable |
| Temperature Sensitivity | 1 Degrees to 9.9 Degrees F |
| Temperature Differential | 1 Degrees to 9.9 Degrees F |
| Filter Change Reminder | No |
| Number of Zones | 1 |
| Pilot Duty Rating | Not Applicable |
| Frequency | 60 Hz |
| Lead Length | Not Applicable |
| Maximum Control Temperature | 90 deg F |
| Minimum Operating Humidity | Not Applicable |
| Minimum Operating Temperature | Not Applicable |
| Amperage | Not Applicable |
| Programming Capability | 7-Day |
| Overall Width | 4-3/4 in |
| Number of Cooling Stages - Conventional System | 1 |
| Includes Positive Off | No |
| Sensor Diameter | Not Applicable |
| Lead Material | Not Applicable |
| Number of Relay Inputs | Not Applicable |
| Housing Color | White |
| Number of Heating Stages - Conventional System | 1 |
| Number of Pipes | Not Applicable |
| Mounting Direction | Horizontal |
| Number of Heating Stages - Heat Pump System | 1 |
| Fan Settings | Low-High |
| Minimum Control Temperature | 40 deg F |
| Housing Material | Plastic |
| Backlit Screen Color | Green |
| Number of Relay Outputs | Not Applicable |
| Shape | Rectangle |
| Overall Depth | 1 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
