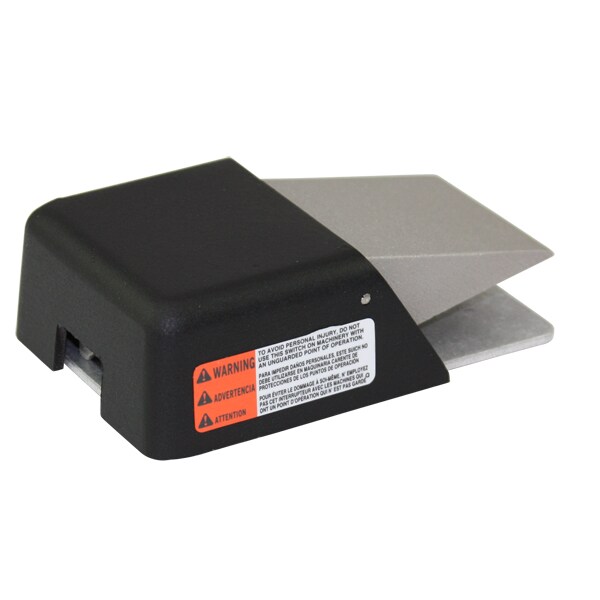

El Linemaster Airval - Clásico - 2E-20V2-S es un producto de alta calidad que ofrece rendimiento y durabilidad. Ideal para uso en entornos industriales y comerciales.
| Item | Classic 2-Way Variable Flow Valve |
|---|---|
| MATERIALS | Variable Flow design Internal Valve is constructed of a Non-Ferrous body, Stainless steel plunger and Teflon coated buna-N O-rings Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side Air exhausts around plunger Versatility And Good Looks Cast Aluminum Housing |
| Actions | Momentary Variable Control |
| PURPOSE | Long Treadle Throw Desgin |
| Input & Output Ports | 1/8"-27 NPT Ports - Within Housing |
| Pneumatic Valves | 1/8"-27 NPT ports - within housing, 2-way, variable flow air valve |
| Housing Colors | Black |
| Housing Materials | Cast Aluminum |
| FEATURES & BENEFITS | Nonskid Base Pad Designed for long life operation Two-Way models do not exhaust back pressure Plunger can be depressed flush with valve body without damage to valve Standard 1/8-27 N.P.T. input and output ports Filtered and lubricated air supply is required for best operation Line pressure up to 150 P.S.I. |
| Switch Type | Pneumatic Airval |
| Package Quantity | 1 |
