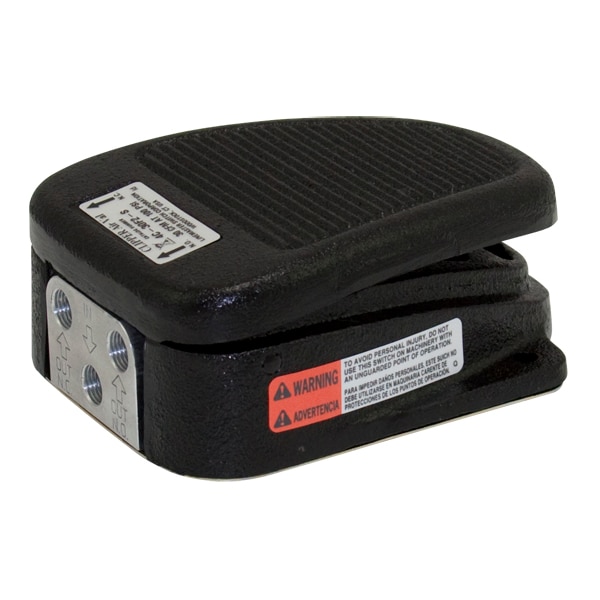

Conmutador de Pie, Interruptor de Pie de Aire
| Item | Foot Switch |
|---|---|
| NEMA Rating | 1, 13, 2, 4 |
| Color | Black |
| Material | Cast Iron |
| Width | 5-7/8 in |
| Depth | 4-3/8 in |
| Length | 9 in |
| Cord Length | Not Applicable |
| IP Rating | Not Applicable |
| Action | Momentary |
| Standards | RoHS |
| Manufacturers Warranty Length | 1 yr |
| Features | (2) Mounting Holes, 4-Way Pedal, Line Pressure up to 150 psi, Non-Skid, 1/8-27 NPT Input and Output Ports |
| Cord Type | No Cord |
| Overall Width | 5.87 in |
| Length (Straight Wireway) | 9 in |
| FEATURES & BENEFITS | Designed for long life operation Nonskid Base Pad Plunger can be depressed flush with valve body without damage to valve Standard 1/8-27 N.P.T. input and output ports Filtered and lubricated air supply is required for best operation Line pressure up to 150 P.S.I. 2 holes provided for rigid mounting to floor or equipment Two-way models do not exhaust back pressure |
| Switch Type | Pneumatic Airval |
| Input & Output Ports | 1/8"-27 NPT Ports - Exposed |
| Housing Colors | Black |
| MATERIALS | Internal Valve is constructed of a Non-Ferrous body, Stainless steel plunger and Teflon coated buna-N O-rings Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side Air exhausts around plunger Operating temperature 0 to 131 °F (-18 to +55 °C) Rugged Cast Iron Housing |
| PURPOSE | Medium Duty General Purpose Design |
| Actions | Momentary |
| Housing Materials | Cast Iron |
| Pneumatic Valves | 4-way air valve |
| Overall Depth | 4.38 in |
| Power Source | Pneumatic |
| Termination Connection Type | Conduit Hole |
| DC Contact Rating | Not Applicable |
| Includes Potentiometer | No Potentiometer Included |
| NEMA Enclosure Rating | 1, 13, 2, 4 |
| Number of Pedals | 1 |
| Series | AirVal Clipper |
| Hazardous Location Specification | Not Rated |
| Includes Foot Guard | No Guard Included |
| Manufacturer Warranty Length | 1 yr |
| AC Contact Rating | Not Applicable |
| Horsepower | Not Applicable |
| Package Quantity | 1 |
