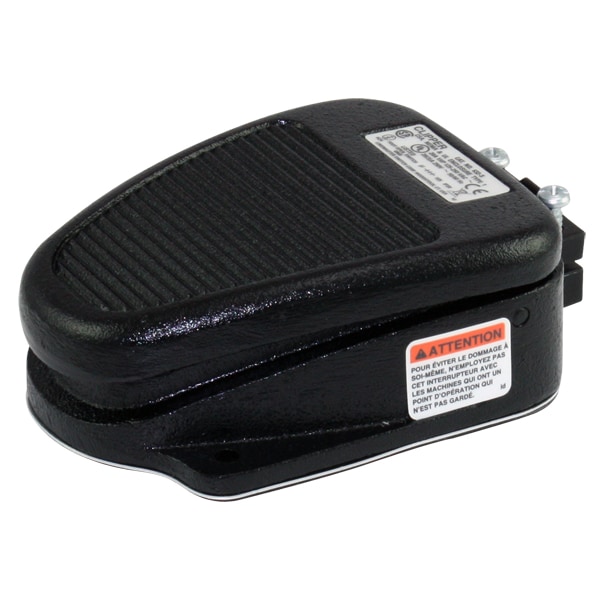

Interruptor de pie de uso general, SPDT, momentáneo, 125/250V CA, 1, 20, hierro fundido, negro.
| Item | Foot Switch |
|---|---|
| Contact Form | SPDT |
| NEMA Rating | 1 |
| Voltage Rating | 125/250V AC |
| Color | Black |
| HP | 1 |
| Material | Cast Iron |
| Width | 3-1/2 in |
| Depth | 1-1/2 in |
| Length | 4-1/2 in |
| IP Rating | IP20 |
| Current Rating | 20 |
| Action | Momentary |
| Footnotes | 10 |
| Cord Length | Not Applicable |
| Features | (2) Mounting Holes |
| Standards | CE, CSA, RoHS, UL Listed |
| Overall Width | 3-1/2 in |
| Overall Height | 2.13 in |
| Length (Straight Wireway) | 4-1/2 in |
| Products By Industry | Fabricated Metals |
| Switch Type | Electrical |
| Cable Entries | Adjustable strain relief clamp |
| ENCLOSURE | NEMA Type 1 • UL ENCLOSURE Type 1 • CSA ENCLOSURE Type 1 • EN 60529 Degree Of Protection • IP20 |
| MATERIALS | Proven Reliability All maintained models offer "Push On-Push Off" action that insures long trouble-free performance 2 holes provided for rigid mounting to floor or equipment |
| PURPOSE | Medium Duty General Purpose Design |
| Circuitries | SPDT |
| Switch Connections | Screw terminal |
| Housing Materials | Cast Iron |
| Actions | Single Stage Momentary |
| Housing Colors | Black |
| Electrical Ratings | 20A, 125-250 VAC, 1 HP 125-250 VAC |
| FEATURES & BENEFITS | Adhesive Applicator Armored Vehicle Assembly-Thermoplastics Braider Braking System Building Machine Button Machine Camera Check-out Counters Combustion Controller Communication Systems Computers Converting Systems Conveyor Belt Lacing Machine Cordset Manufacturing Machine Cradle Crimping Machine Cut to Length System Cutter Deburring/Chamfering Machines Decorator Degreasers Depanelizer Desoldering Station Dispenser Dispensing-Curing System Ditch Digger Emergency Vehicles Engraving Machines Epilator Eyeletting Machine Farm Equipment Feeding & Inserting Systems Filler Finisher Finishing Machine Flexible Shaft Machines Flocking Machine Flycutter Folding & Creasing Machine Grinder Grommeting Machine Hand Tool Handpiece Heat Treating Inspecting & Measuring System Inspection Workstation Intercom Systems Ion Air Gun Lathes Lift Lights Measuring Machine Medical Equipment Microscopes Packaging System Paper Tipper Peeling Machine Photographic Equipment Piercing Machine Planishing Machines Platforms Positioner/Turntable Presser Printing Machines Pump Reel Take-up System Rewind System Riveter Rolling Machine Router Sand Blasters Saw Sealer Sewing Machine Shoe Machine Slitter Snow Removal Machine Solder Sorting Machine Splicers Stapler Sterilizer Stitcher Strapping Machine Stripper Submarines Surgical Equipment Tables Taping Machine Telephone Equipment Termination Machine Tester Tug Turntable TV Studio Equipment Vise Waxer Welders Winding Equipment Wreath Making Machine X-Ray Machine |
| Hazardous Location Specification | Not Rated |
| DC Contact Rating | Not Applicable |
| Termination Connection Type | Screw Terminal |
| Number of Pedals | 1 |
| Series | Clipper |
| Includes Foot Guard | No Guard Included |
| Horsepower | 1 HP @ 125 to 250V AC |
| AC Contact Rating | 20 A @ 125 to 250 V |
| Overall Depth | 5.61 in |
| Power Source | Electrically Corded |
| NEMA Enclosure Rating | 1 |
| Includes Potentiometer | No Potentiometer Included |
| Resistance Properties | Corrosion Resistant, Watertight |
| Package Quantity | 1 |
