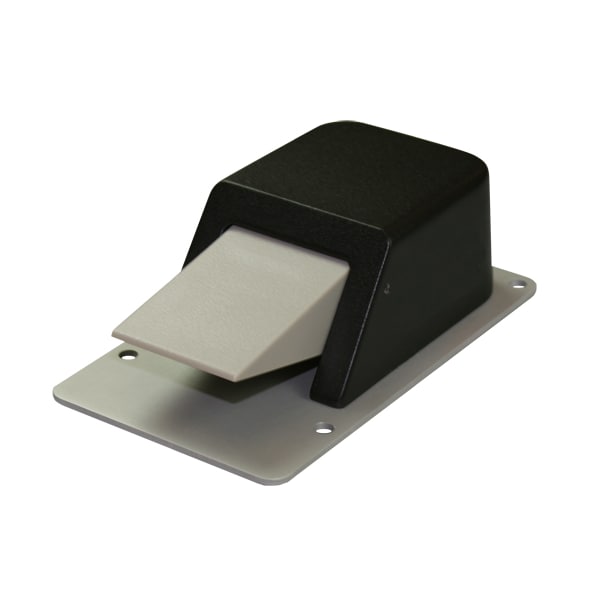

Interruptor de pie de uso general, acción momentánea
| Item | Foot Switch |
|---|---|
| Contact Form | SPDT |
| NEMA Rating | 13, 2, 4, 6, 6P |
| Voltage Rating | 125/250V AC |
| Color | Black |
| HP | 1/2 |
| Material | Aluminum |
| Width | 4-1/2 in |
| Depth | 2-5/8 in |
| Length | 7 in |
| Action | Momentary |
| Current Rating | 16 |
| Features | (4) Mounting Holes, Non-Skid |
| Standards | CE, CSA, RoHS, UL Listed |
| IP Rating | IPX8 |
| Cord Type | 14/3 |
| Cord Length | 8 ft |
| Overall Height | 2-1/2 in |
| Overall Width | 7.4 in |
| Length (Straight Wireway) | 7 in |
| Electrical Ratings | 16A, 125-250 VAC, 1/2 HP 125-250 VAC |
| MATERIALS | One Piece Cast Aluminum Housing Single Stage Momentary Contact Aluminum baseplate on unguarded models Single Pedal 1/2"-14 N.P.T. Threaded Conduit Opening is Standard Twin Pedal 3/4"-14 N.P.T. Threaded Conduit Opening is Standard |
| Cable Entries | NPT threaded entry |
| Switch Type | Electrical |
| PURPOSE | Compact & Waterproof Design |
| FEATURES & BENEFITS | Non-Skid Feet To Minimize Movement Divider Bar on Twin Models aids in Reducing Accidental Operation of Multiple Pedals at Once 4 holes provided for rigid mounting to floor or equipment |
| Actions | Single Stage Momentary |
| Housing Colors | Black |
| Housing Materials | Cast Aluminum |
| Cordsets | 6-ft cordset, no plug |
| ENCLOSURE | NEMA Type 1, 2, 4, 6, 6P & 13 • UL ENCLOSURE 1, 2, 4, 6, 6P & 13 • EN 60529 Degree Of Protection • IP68 • IEC 60601-2-2 • CSA ENCLOSURE 1, 2, 4, 6, 6P, & 13 |
| Circuitries | SPDT |
| Switch Connections | Quick-connect terminal, terminal, Pre-wired |
| Includes Potentiometer | No Potentiometer Included |
| DC Contact Rating | Not Applicable |
| Number of Pedals | 1 |
| AC Contact Rating | 16 A @ 125 to 250 V |
| Termination Connection Type | Pre-Cabled |
| Power Source | Electrically Corded |
| NEMA Enclosure Rating | 1, 13, 2, 4, 6, 6P |
| Overall Depth | 7 in |
| Horsepower | 0.5 HP @ 125 to 250V AC |
| Series | Classic IV |
| Hazardous Location Specification | Not Rated |
| Includes Foot Guard | No Guard Included |
| Package Quantity | 1 |
