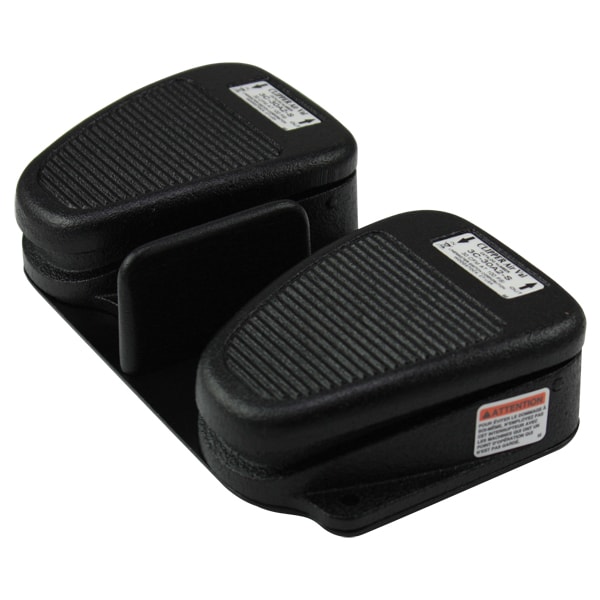

Interruptor de Pedal de Propósito General, Acción Momentánea
| Item | Foot Switch |
|---|---|
| Contact Form | (2) SPDT |
| NEMA Rating | 1 |
| Voltage Rating | 125/250V AC |
| Color | Black |
| HP | 1 |
| Material | Zinc |
| Width | 8-3/8 in |
| Depth | 1-7/8 in |
| Length | 4-1/2 in |
| Footnotes | 9 |
| Action | Momentary |
| Current Rating | 20 |
| IP Rating | IP20 |
| Features | (4) Mounting Holes, (2) Mounting Holes |
| Standards | CE, CSA, RoHS, UL Listed |
| Cord Length | Not Applicable |
| Overall Width | 8.38 in |
| Overall Height | 1.87 in |
| Length (Straight Wireway) | 4-1/2 in |
| PURPOSE | Medium Duty General Purpose Design |
| Switch Type | Electrical |
| Cable Entries | Adjustable strain relief clamp |
| Shields & Guards | Optional Twin guard 522-B12, Optional Oversized Twin guard 522-D28 |
| Housing Colors | Black |
| Switch Connections | Screw terminal |
| MATERIALS | Proven Reliability All maintained models offer "Push On-Push Off" action that insures long trouble-free performance Wide Treadle Models have 2 holes provided for rigid mounting to floor or equipment Twin Models have 4 holes provided for rigid mounting to floor or equipment Divider Bar on Twin Models aids in Reducing Accidental Operation of Multiple Pedals at Once |
| FEATURES & BENEFITS | Adhesive Applicator Armored Vehicle Assembly-Thermoplastics Braider Braking System Building Machine Button Machine Camera Check-out Counters Combustion Controller Communication Systems Computers Converting Systems Conveyor Belt Lacing Machine Cordset Manufacturing Machine Cradle Crimping Machine Cut to Length System Cutter Deburring/Chamfering Machines Decorator Degreasers Depanelizer Desoldering Station Dispenser Dispensing-Curing System Ditch Digger Emergency Vehicles Engraving Machines Epilator Eyeletting Machine Farm Equipment Feeding & Inserting Systems Filler Finisher Finishing Machine Flexible Shaft Machines Flocking Machine Flycutter Folding & Creasing Machine Grinder Grommeting Machine Hand Tool Handpiece Heat Treating Inspecting & Measuring System Inspection Workstation Intercom Systems Ion Air Gun Lathes Lift Lights Measuring Machine Medical Equipment Microscopes Packaging System Paper Tipper Peeling Machine Photographic Equipment Piercing Machine Planishing Machines Platforms Positioner/Turntable Presser Printing Machines Pump Reel Take-up System Rewind System Riveter Rolling Machine Router Sand Blasters Saw Sealer Sewing Machine Shoe Machine Slitter Snow Removal Machine Solder Sorting Machine Splicers Stapler Sterilizer Stitcher Strapping Machine Stripper Submarines Surgical Equipment Tables Taping Machine Telephone Equipment Termination Machine Tester Tug Turntable TV Studio Equipment Vise Waxer Welders Winding Equipment Wreath Making Machine X-Ray Machine |
| Actions | Single Stage Momentary |
| Electrical Ratings | 20A, 125-250 VAC, 1 HP 125-250 VAC |
| Housing Materials | Cast Iron |
| ENCLOSURE | CSA ENCLOSURE Type 1 • NEMA Type 1 • UL ENCLOSURE Type 1 • EN 60529 Degree Of Protection • IP20 |
| Circuitries | SPDT |
| DC Contact Rating | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Resistance Properties | Watertight |
| Overall Depth | 4.54 in |
| Power Source | Electrically Corded |
| Hazardous Location Specification | Not Rated |
| Series | Twin Clipper |
| Number of Pedals | 2 |
| Termination Connection Type | Screw Terminal |
| AC Contact Rating | 20 A @ 125 to 250 V |
| Horsepower | 1 HP @ 125 to 250V AC |
| Includes Potentiometer | No Potentiometer Included |
| Includes Foot Guard | No Guard Included |
| Package Quantity | 1 |
