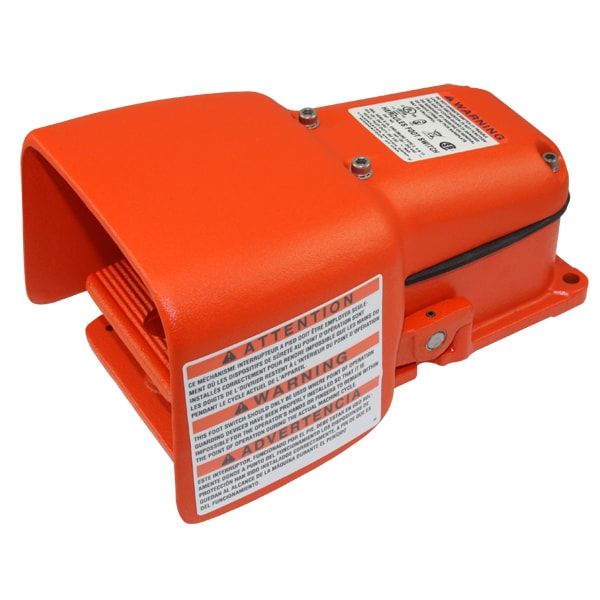

Interruptor de Pedal de Alta Resistencia, DPDT, Momentáneo, 125/250V AC, 13/2/4, 20, Hierro Fundido, Naranja
| Item | Foot Switch |
|---|---|
| Contact Form | DPDT |
| NEMA Rating | 13, 2, 4 |
| Voltage Rating | 125/250V AC |
| Color | Orange |
| HP | 1 |
| Material | Cast Iron |
| Width | 6 in |
| Depth | 4-1/2 in |
| Length | 9 in |
| IP Rating | IP56 |
| Current Rating | 20 |
| Footnotes | 4 |
| Features | (3) Mounting Holes |
| Action | Momentary |
| Cord Length | Not Applicable |
| Standards | CSA, RoHS, UL Listed |
| Includes | Ground Screw, Neoprene Cover Gasket, O-Ring |
| Overall Width | 5.88 in |
| Overall Height | 4.37 in |
| Length (Straight Wireway) | 9 in |
| Products By Industry | Fabricated Metals |
| FEATURES & BENEFITS | Benders Box Marker Brakes Chopper Cleaner Closing System Conveyor Systems Crimping Machine Cut Off Machines for Pipe and Tubing Cutter Cutting Machine Drilling Machine Drilling Table Fabricator Filler Removal Machine Folding Machine Food Processing Equipment Forming System Grinder Grinding Machine Lacers Lathes Lift Marking System Material Handlers Microscopes Missile Launching Control Systems Molding Machines Nibbler Notcher Oil Drilling Rigs Platforms Positioners Potters Wheels Puller Punching Equipment Rewind System Riveter Roll Groover Router Saw Saw Mill Scrap Chopper Sewer Cleaning Equipment Shears Shoe Machine Shredder Space Shuttle Spinners Stapler Surgical Equipment Tables Tester Thread Rolling Machine Threading Machine Trimming Beading and Forming Machines Beading & Forming Machines Tube-end Forming Machines Tube Expansion Device Turn/Mill Centers Turner Turning Centers Turntable Tying & Bundling Machines Voltage Control Water Cannon Welders Winding Equipment Wire Drawing System |
| MATERIALS | Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw In all Maintained Contact models the release is accomplished by simply pressing the latch with a light forward movement of the toe. The release is placed under the Full Shield so falling objects cannot easily release it 3 holes provided for rigid mounting to the floor or equipment |
| Circuitries | DPDT |
| ENCLOSURE | NEMA Type 2, 4, 13 • UL ENCLOSURE 2, 4, 13 • CSA ENCLOSURE 2, 4, 13 • EN 60529 Degree Of Protection IP56 |
| Housing Colors | Orange |
| Actions | Single Stage Momentary |
| PURPOSE | Standard Full Shield |
| Switch Connections | Screw terminal |
| Housing Materials | Cast Iron |
| Electrical Ratings | 20 A 125-250 VAC, 1 H.P. 125-250 VAC, Heavy Pilot Duty 250 VAC Max. |
| Shields & Guards | Full shield |
| Switch Type | Electrical |
| Cable Entries | NPT threaded entry, 3/4"-14 NPT entry |
| Number of Pedals | 1 |
| Series | Hercules |
| Power Source | Electrically Corded |
| AC Contact Rating | 20 A @ 125 to 250 V |
| Overall Depth | 9 in |
| NEMA Enclosure Rating | 13, 2, 4 |
| Includes Foot Guard | Guard Included |
| DC Contact Rating | Not Applicable |
| Horsepower | 1 HP @ 125 to 250V AC |
| Termination Connection Type | Screw Terminal |
| Hazardous Location Specification | Not Rated |
| Includes Potentiometer | No Potentiometer Included |
| Package Quantity | 1 |
