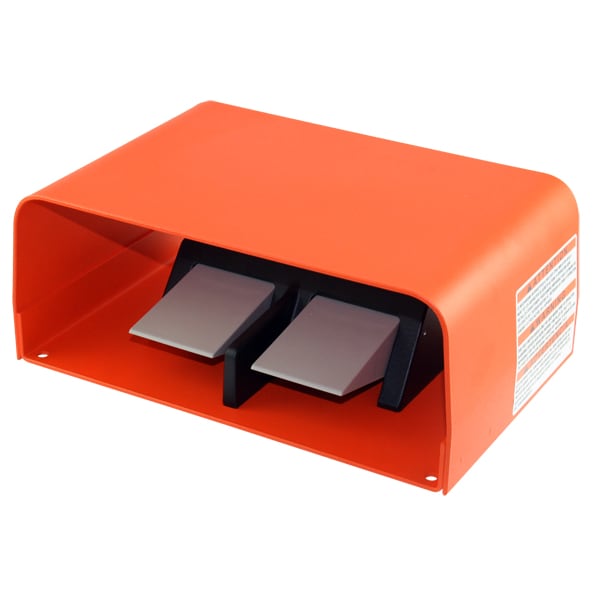

Interruptor de Pie de Propósito General Reversible, Acción Momentánea
| Item | Foot Switch |
|---|---|
| Contact Form | SPDT |
| NEMA Rating | 13, 2, 4, 6, 6P |
| Voltage Rating | 125/250V AC |
| Color | Black, Orange |
| HP | 1/2 |
| Material | Aluminum |
| Width | 11 in |
| Depth | 4-1/2 in |
| Length | 7 in |
| Action | Momentary |
| IP Rating | IPX8 |
| Footnotes | 4,9 |
| Current Rating | 16 |
| Cord Length | Not Applicable |
| Standards | CE, CSA, RoHS, UL Listed |
| Features | (4) Mounting Holes, Non-Skid |
| Overall Height | 2-1/2 in |
| Overall Width | 7.4 in |
| Length (Straight Wireway) | 7 in |
| Products By Industry | Fabricated Metals |
| Actions | Single Stage Momentary |
| ENCLOSURE | NEMA Type 1, 2, 4, 6, 6P & 13 • UL ENCLOSURE 1, 2, 4, 6, 6P & 13 • EN 60529 Degree Of Protection • IP68 • IEC 60601-2-2 • CSA ENCLOSURE 1, 2, 4, 6, 6P, & 13 |
| Housing Materials | Cast Aluminum |
| FEATURES & BENEFITS | Non-Skid Feet To Minimize Movement Divider Bar on Twin Models aids in Reducing Accidental Operation of Multiple Pedals at Once 4 holes provided for rigid mounting to floor or equipment Heavy Gauge Steel Full Guard painted Alert Orange Covering Entire Foot Switch |
| Switch Connections | Quick-connect terminal |
| Shields & Guards | Guarded |
| Housing Colors | Orange, Black |
| Cable Entries | NPT threaded entry, 3/4"-14 NPT entry |
| Circuitries | SPDT |
| Electrical Ratings | 16A, 125-250 VAC, 1/2 HP 125-250 VAC |
| MATERIALS | One Piece Cast Aluminum Housing Single Stage Momentary Contact Aluminum baseplate on unguarded models Single Pedal 1/2"-14 N.P.T. Threaded Conduit Opening is Standard Twin Pedal 3/4"-14 N.P.T. Threaded Conduit Opening is Standard |
| PURPOSE | Guarded, Compact & Waterproof Design |
| Switch Type | Electrical |
| Includes Potentiometer | No Potentiometer Included |
| Power Source | Electrically Corded |
| Number of Pedals | 2 |
| Hazardous Location Specification | Not Rated |
| DC Contact Rating | Not Applicable |
| Series | Twin Classic IV |
| AC Contact Rating | 16 A @ 125 to 250 V |
| Horsepower | 0.5 HP @ 125 to 250V AC |
| Termination Connection Type | Conduit Hole |
| NEMA Enclosure Rating | 1, 13, 2, 4, 6, 6P |
| Includes Foot Guard | Guard Included |
| Overall Depth | 7 in |
| Package Quantity | 1 |
