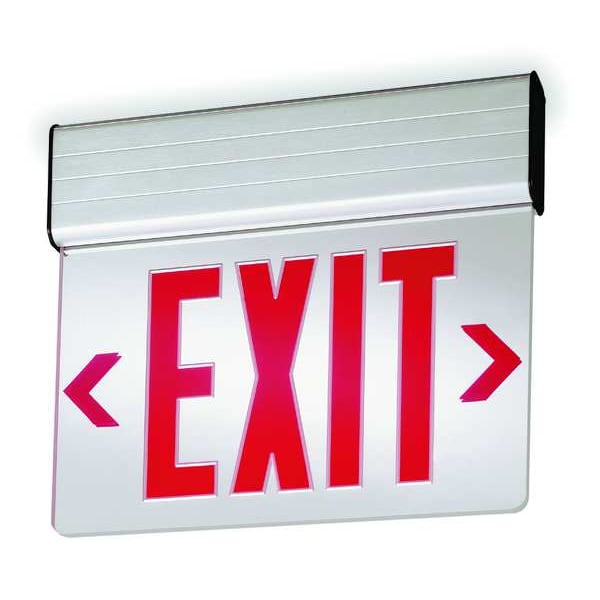

Edge-lit Exit Sign, Silver, 2 Face(s), LED, Universal Mount, Nickel Cadmium
| Item | Edge-lit Exit Sign |
|---|---|
| Width | 15-1/8 in |
| Height | 13-1/4 in |
| Voltage | 120/277 V AC |
| Housing Material | Aluminum |
| Number of Faces | 2 |
| Mounting | Universal |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | Silver |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Red |
| Standards | NEC, NFPA 101, OSHA, UL, UL 924 |
| Emergency Back Up Battery | Yes |
| Number of Lamp Heads | 0 |
| Lamp Type | LED |
| Housing Color - Emergency Lighting and Exit Signs | Gray |
| Background Color | Clear |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Fixture Wattage | 3 W |
| Operating Temp. Range | 32 to 100 deg F |
| Letter Size | 1 in Stroke x 8 in High |
| Warranty | 3 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Battery Type | Nickel Cadmium |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | No Heads |
| Depth | 1-3/4 in |
| Housing Material - Emergency Lighting and Exit Signs | Aluminum |
| Item - Emergency Lighting and Exit Signs | Exit Sign |
| Includes | Canopy |
| Housing Finish | Matte |
| Text Height | 8 in |
| Manufacturers Warranty Length | 5 yr |
| Emergency Battery Backup | With Battery Backup |
| Compliance Type | New York City Approved |
| Series | EDGNY |
| Overall Width | 15-1/8 in |
| Text Stroke Width | 1 in |
| Overall Depth | 1-3/4 in |
| Self Diagnostics | No |
| Lamp Wattage | 3 W |
| Text Size | 1 in Stroke x 8 in High |
| Overall Height | 13-1/4 in |
| Text Color | Red |
| Maximum Operating Temperature | 100 deg F |
| Minimum Operating Temperature | 32 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
