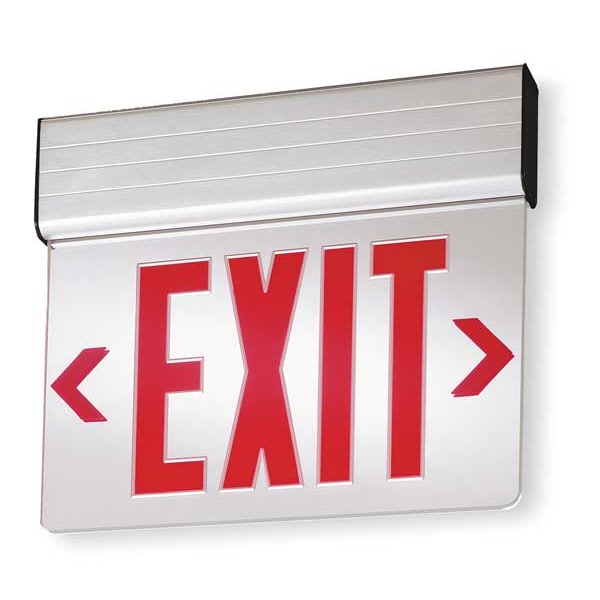

Edge-lit Exit Sign, Silver, 2 Face(s), LED, Universal Mount, Not Battery Powered
| Item | Edge-lit Exit Sign |
|---|---|
| Width | 12-3/4 in |
| Height | 11-1/8 in |
| Voltage | 120/277 V AC |
| Housing Material | Aluminum |
| Number of Faces | 2 |
| Mounting | Universal |
| Lighting Technology | LED |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | Silver |
| Battery Chemistry | Not Battery Powered |
| Letter Color | Red |
| Standards | Fcc Title 47, Part 15, Subpart B Requirements, Nec, Nfpa 101, Osha, Ul924 |
| Item - Emergency Lighting and Exit Signs | Exit Sign |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Emergency Back Up Battery | No |
| Fixture Wattage | 2.8 W |
| Housing Material - Emergency Lighting and Exit Signs | Aluminum |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | No Heads |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Includes | Canopy |
| Background Color | Clear |
| Lamp Type | LED |
| Depth | 3/8 in |
| Housing Color - Emergency Lighting and Exit Signs | Gray |
| Number of Lamp Heads | 0 |
| Letter Size | 3/4 in Stroke x 6 in High |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Warranty | 5 yr |
| Housing Finish | Matte |
| Text Color | Red |
| Compliance Type | None |
| Maximum Operating Temperature | 122 deg F |
| Overall Width | 13-5/8 in |
| Text Height | 6 in |
| Text Stroke Width | 3/4 in |
| Manufacturers Warranty Length | 5 yr |
| Diagnostic Testing Function | Test Button |
| Overall Height | 11-1/8 in |
| Text Size | 3/4 in Stroke x 6 in High |
| CA Title 20 Compliant | Yes |
| Emergency Battery Backup | Without Battery Backup |
| Lamp Wattage | 2.8 W |
| Self Diagnostics | No |
| Series | EDG |
| Minimum Operating Temperature | 32 deg F |
| Overall Depth | 5-1/2 in |
| Compatible Guard | 4YFV2 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
