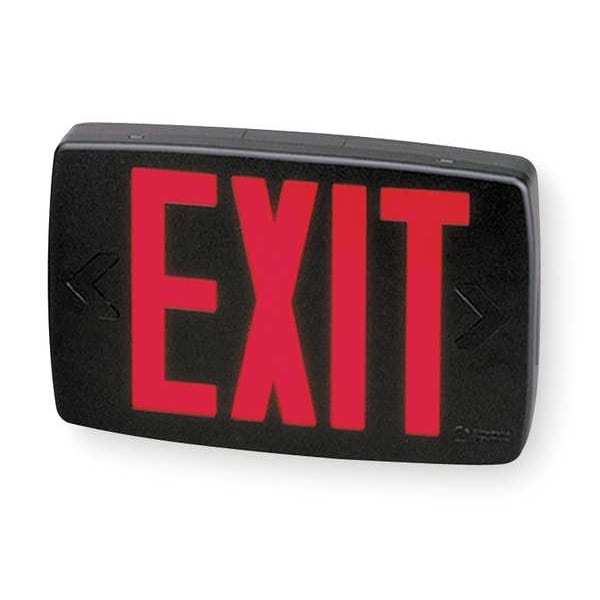

Exit Sign, Black, 1 Face(s), LED, Universal Mount, Not Battery Powered
| Item | Exit Sign |
|---|---|
| Width | 11-3/4 in |
| Height | 7-5/8 in |
| Voltage | 120/277 V AC |
| Housing Material | Plastic |
| Number of Faces | 1 |
| Mounting | Universal |
| Lighting Technology | LED |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | Black |
| Battery Chemistry | Not Battery Powered |
| Letter Color | Red |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | No Heads |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Housing Color - Emergency Lighting and Exit Signs | Black |
| Fixture Wattage | 1 W |
| Item - Emergency Lighting and Exit Signs | Exit Sign |
| Letter Size | 3/4 in Stroke x 6 in High |
| Number of Lamp Heads | 0 |
| Standards | FCC Title 47, Part 15, Subpart B Requirements, NEC, NFPA 101, NOM Certified, OSHA, UL924 |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Bulb Technology | LED |
| Emergency Back Up Battery | No |
| Depth | 1-5/16 in |
| Background Color | Black |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Warranty | 5 yr |
| Lamp Type | LED |
| Optional Guard | 4YFV2 |
| Includes | Canopy |
| Housing Finish | Matte |
| Overall Width | 11-3/4 in |
| Maximum Operating Temperature | 104 deg F |
| Manufacturers Warranty Length | 5 yr |
| Text Height | 6 in |
| CA Title 20 Compliant | Yes |
| Text Stroke Width | 3/4 in |
| Text Size | 3/4 in Stroke x 6 in High |
| Compliance Type | None |
| Self Diagnostics | No |
| Compatible Guard | 4YFV2 |
| Emergency Battery Backup | No |
| Lamp Wattage | 0.6 W |
| Minimum Operating Temperature | 50 deg F |
| Overall Height | 7-5/8 in |
| Diagnostic Testing Function | Test Button |
| Series | LQM |
| Text Color | Red |
| Overall Depth | 2 in |
| Country of Origin (subject to change) | Viet Nam |
| Package Quantity | 1 |
