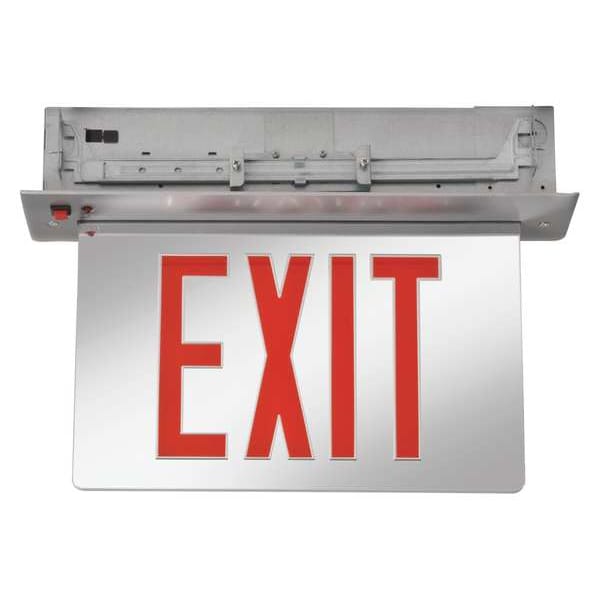

Exit Sign, Silver, 2 Face(s), LED, Recessed Mount, Nickel Cadmium
| Item | Exit Sign |
|---|---|
| Width | 13 in |
| Height | 8 in |
| Voltage | 120/277 V AC |
| Housing Material | Aluminum |
| Number of Faces | 2 |
| Mounting | Recessed |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | Silver |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Red |
| Background Color | Clear |
| Depth | 1-3/4 in |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Item - Emergency Lighting and Exit Signs | Exit Sign |
| Warranty | 5 yr |
| Operating Temp. Range | 0 to 50 deg C |
| Optional Guard | No |
| Standards | FCC Title 47, Part 15, Subpart B Requirements, NEC, NFPA 101, OSHA, UL924 |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Emergency Back Up Battery | Yes |
| Housing Color - Emergency Lighting and Exit Signs | Clear |
| Includes | Bar Hanger, Brackets |
| Letter Size | 3/4 in Stroke x 6 in High |
| Fixture Wattage | 3 W |
| Number of Lamp Heads | 0 |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | No Heads |
| Housing Finish | Matte |
| Minimum Operating Temperature | 32 deg F |
| Overall Depth | 1-3/4 in |
| Lamp Wattage | 3.1 W |
| Text Height | 6 in |
| Text Stroke Width | 3/4 in |
| Emergency Battery Backup | With Battery Backup |
| Overall Width | 13 in |
| Text Color | Red |
| Self Diagnostics | No |
| Compatible Guard | 4YFV2 |
| CA Title 20 Compliant | Yes |
| Compliance Type | None |
| Text Size | 3/4 in Stroke x 6 in High |
| Overall Height | 8 in |
| Series | EDGR |
| Diagnostic Testing Function | Test Button |
| Maximum Operating Temperature | 122 deg F |
| Manufacturers Warranty Length | 5 yr |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
