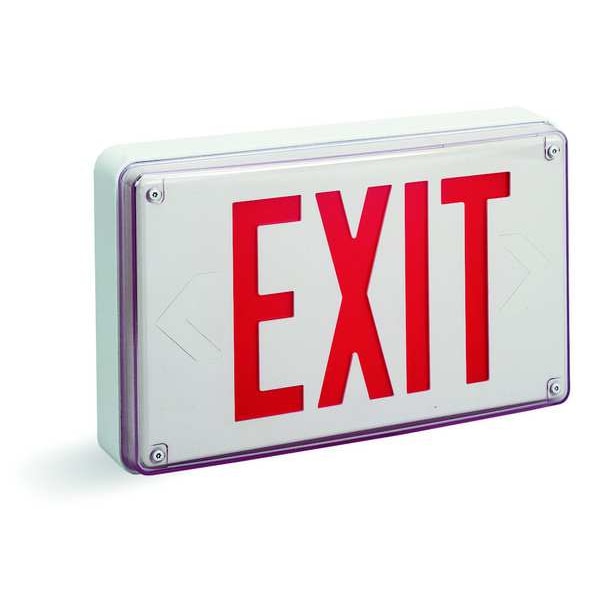

Exit Sign, White, 1 Face(s), LED, Back Mount, Nickel Cadmium
| Item | Exit Sign |
|---|---|
| Width | 13-7/8 in |
| Height | 8-5/8 in |
| Voltage | 120/277 V AC |
| Housing Material | Aluminum |
| Number of Faces | 1 |
| Mounting | Back |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Red |
| Standards | BAA, NEMA 4X, NFPA 101, NSF, UL |
| Lamp Type | LED |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Housing Material - Emergency Lighting and Exit Signs | Aluminum |
| Fixture Wattage | 2 W |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Depth | 3 in |
| Battery Type | Nickel Cadmium |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Background Color | White |
| Warranty | 5 yr |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | No Heads |
| Number of Lamp Heads | 0 |
| Item - Emergency Lighting and Exit Signs | Exit Sign |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Bulb Technology | LED |
| Letter Size | 3/4 in Stroke x 6 in High |
| Emergency Back Up Battery | Yes |
| Includes | Conduit Entry |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Overall Height | 8-3/4 in |
| Overall Width | 13-7/8 in |
| Application | Vandal Resistant |
| Housing Finish | Matte |
| Environmental Rating | Dry Location Rated |
| Self Diagnostics | No |
| Diagnostic Testing Function | Test Button |
| Overall Depth | 3 in |
| Text Color | Red |
| Lamp Wattage | 2.2 W |
| Series | LV |
| Text Height | 6 in |
| Text Stroke Width | 3/4 in |
| Manufacturers Warranty Length | 5 yr |
| Text Size | 3/4 in Stroke x 6 in High |
| Emergency Battery Backup | With Battery Backup |
| Compliance Type | None |
| Lighting Certification | Unrated |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
