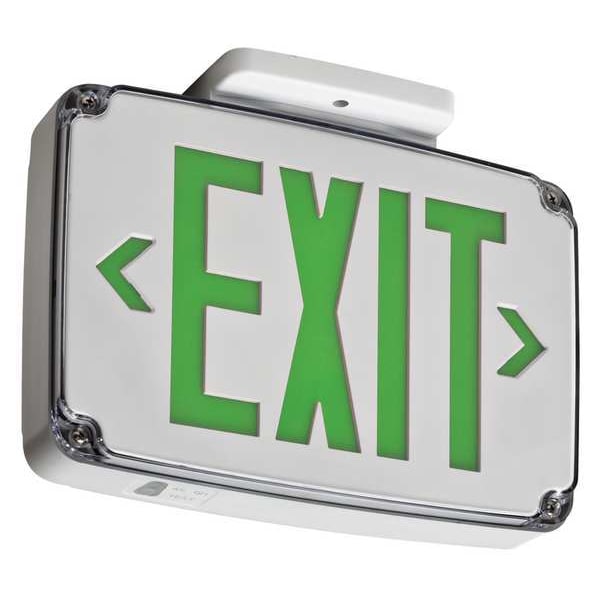

Exit Sign, White, 1 Face(s), LED, Universal Mount, Nickel Cadmium
| Item | Exit Sign |
|---|---|
| Width | 12-1/2 in |
| Height | 8-1/8 in |
| Voltage | 120/277 V AC |
| Housing Material | Plastic |
| Number of Faces | 1 |
| Mounting | Universal |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Green |
| Number of Lamp Heads | 0 |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Warranty | 3 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Optional Guard | 4YFV2 |
| Fixture Wattage | 3.4 W |
| Lamp Type | LED |
| Item - Emergency Lighting and Exit Signs | Exit Sign |
| Standards | FCC Title 47, Part 15, Subpart B Requirements, NFPA 101, NFPA 70-NEC, UL, UL 924 |
| Battery Type | Nickel Cadmium |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Background Color | White |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | No Heads |
| Emergency Back Up Battery | Yes |
| Operating Temp. Range | -4 to 122 deg F |
| Depth | 2-1/2 in |
| Letter Size | 6 in High |
| Includes | Battery, Test Switch |
| Housing Finish | Polished |
| Diagnostic Testing Function | Test Button |
| Series | WLTE |
| Text Height | 6 in |
| Overall Width | 12-1/2 in |
| Text Stroke Width | 3/4 in |
| Overall Depth | 2-1/2 in |
| Compliance Type | None |
| Overall Height | 8-1/8 in |
| Compatible Guard | 4YFV2 |
| Battery Voltage | 4.8 V DC |
| Self Diagnostics | No |
| CA Title 20 Compliant | Yes |
| Minimum Operating Temperature | -4 deg F |
| Manufacturers Warranty Length | 5 yr |
| Text Size | 3/4 in Stroke x 6 in High |
| Maximum Operating Temperature | 122 deg F |
| Emergency Battery Backup | Yes |
| Lamp Wattage | 3.4 W |
| Text Color | Green |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
