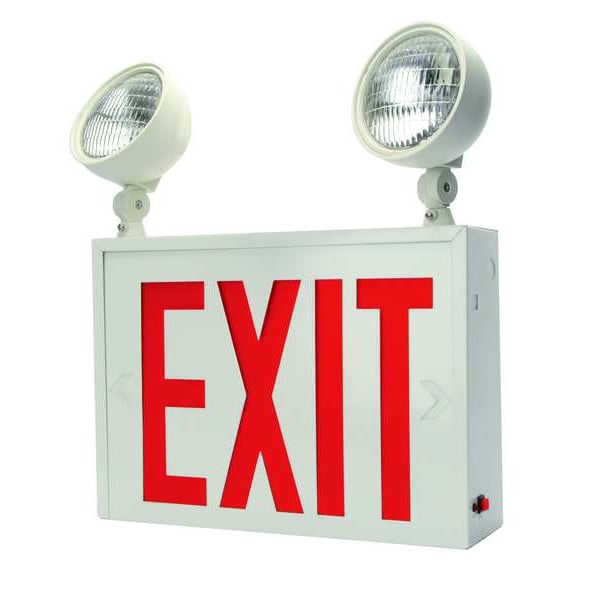

Exit Sign with Emergency Lights, White, 1 Face(s), LED, Flush Only Mount, Lead Calcium
| Item | Exit Sign with Emergency Lights |
|---|---|
| Width | 14-1/2 in |
| Height | 15-1/2 in |
| Voltage | 120/277V AC |
| Housing Material | Steel |
| Number of Faces | 1 |
| Mounting | Flush Only |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Lead Calcium |
| Letter Color | Red |
| Housing Material - Emergency Lighting and Exit Signs | Steel |
| Depth | 4-1/4 in |
| Head Lamps Adjustable | Yes |
| Letter Size | 8 in |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Item - Emergency Lighting and Exit Signs | Exit Sign with Emergency Lights |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Emergency Back Up Battery | Yes |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Fixture Wattage | 12.7 W |
| Optional Guard | 4YFV2 |
| Warranty | 3 yr |
| Standards | NEC, UL, NFPA 101, OSHA, UL 924 |
| Number of Lamp Heads | 2 |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | LED |
| Operating Temp. Range | 60 to 90 deg F |
| Background Color | White |
| Housing Finish | White |
| Emergency Wattage | 5 W |
| Lamp Wattage | 12 W |
| Maximum Operating Temperature | 90 deg F |
| Recommended Single Fixture Spacing | Not Applicable |
| Manufacturers Warranty Length | 3 yr |
| Recommended Mounting Height | Not Applicable |
| Lamp Head Light Source | LED |
| Compatible Guard | 4YFV2 |
| Battery Voltage | 6 V DC |
| Text Height | 8 in |
| Overall Depth | 4-1/4 in |
| CA Title 20 Compliant | No |
| Self Diagnostics | No |
| Lamp Head Location | Top |
| Minimum Operating Temperature | 60 deg F |
| Lamp Head Shape | Round |
| Text Color | Red |
| Application | Demanding |
| Series | LHX-NY |
| Text Size | 1 in Stroke x 8 in High |
| Remote Capacity | 12 W |
| Overall Height | 15-1/2 in |
| Remote Capable | Yes |
| Overall Width | 14-1/2 in |
| Emergency Battery Backup | Yes |
| Compliance Type | New York City Approved |
| Text Stroke Width | 1 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
