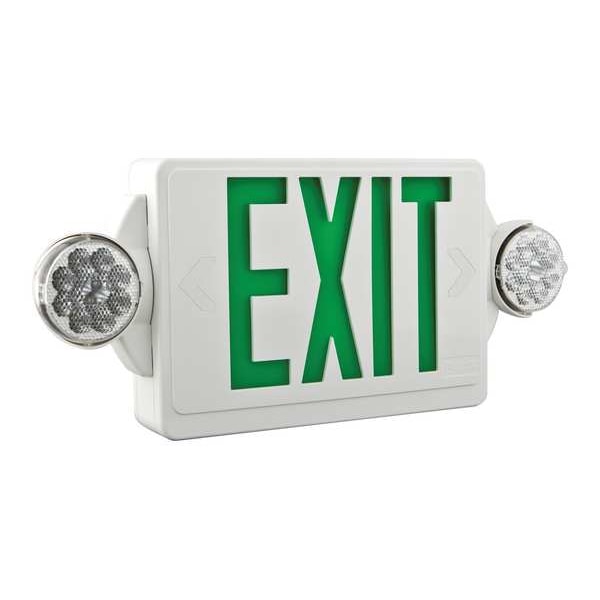

Exit Sign with Emergency Lights, White, 1 Face(s), LED, Nickel Cadmium
| Item | Exit Sign with Emergency Lights |
|---|---|
| Voltage | 120/277V AC |
| Housing Material | Plastic |
| Number of Faces | 1 |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Lamp Head Location | Side |
| Maximum Operating Temperature | 104 deg F |
| Recommended Single Fixture Spacing | 18 ft |
| Standards | CA Title 20, FCC Title 47 Part 15 Subpart B, NFPA 101, NFPA 70 (NEC), OSHA, UL 924, UL Listed |
| Battery Voltage | 9.6 V DC |
| Includes | 3W Remote Capacity |
| Overall Height | 8 in |
| Remote Capacity | 3 W |
| Lamp Head Light Source | LED |
| Number of Bulbs | 2 |
| Diagnostic Testing Function | Test Button |
| Emergency Battery Backup | Yes |
| Minimum Operating Temperature | 50 deg F |
| Self Diagnostics | No |
| CA Title 20 Compliant | Yes |
| Fixture Wattage | 3 W |
| Text Color | Green |
| Housing Finish | UV Stabilized |
| Lamp Head Shape | Round |
| Manufacturers Warranty Length | 5 yr |
| Remote Capable | Yes |
| Lamp Wattage | 1.5 W |
| Compatible Guard | 4YFV1 |
| NEMA Rating | Not Rated |
| Background Color | Black |
| Compliance Type | None |
| Series | LHQM |
| Recommended Mounting Height | 7 ft 6 in |
| Number of Lamp Heads | 2 |
| Environmental Rating | Damp Location Rated |
| Current | 0.03 A, 0.05 A |
| Overall Width | 19-1/4 in |
| Compatible Remote Head | 487V46, 784H17 |
| Country of Origin (subject to change) | Viet Nam |
| Package Quantity | 1 |
