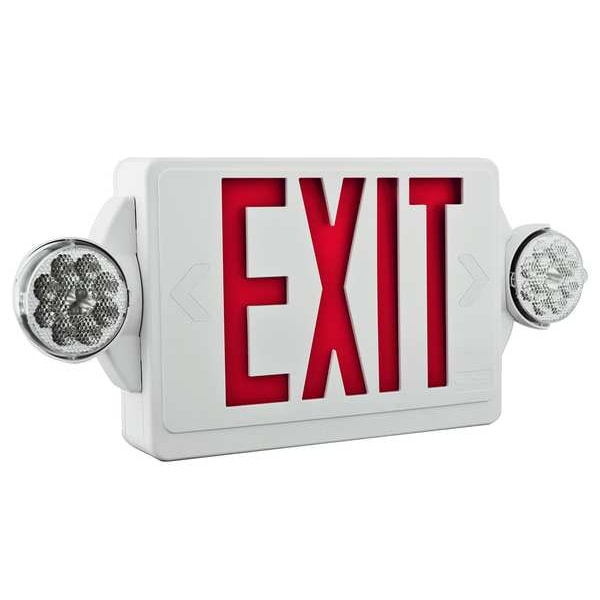

Exit Sign with Emergency Lights, White, 2 Face(s), LED, Universal Mount, Nickel Cadmium
| Item | Exit Sign with Emergency Lights |
|---|---|
| Width | 19-1/4 in |
| Height | 8 in |
| Voltage | 120/277V AC |
| Housing Material | Plastic |
| Number of Faces | 2 |
| Mounting | Universal |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Red |
| Warranty | 5 yr |
| Depth | 2-1/2 in |
| Voltage - Emergency Lighting and Exit Signs | 9.6 |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Emergency Back Up Battery | Yes |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | LED |
| Fixture Wattage | 3 W |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Optional Remote Head | 6NCZ2, 6NCZ3, 6NCZ4, 6NCZ5, 6NCZ6, 6NCZ7, 6NCZ8, 6NCZ9 |
| Number of Lamp Heads | 2 |
| Letter Size | 6 in |
| Standards | NEC, NFPA 101, NOM Certified, OSHA, UL, UL 924 |
| Head Lamps Adjustable | Yes |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Operating Temp. Range | 50 to 104 deg F |
| Item - Emergency Lighting and Exit Signs | Exit Sign with Emergency Lights |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Includes | Light and Switch |
| Overall Width | 19-1/4 in |
| Application | Indoor |
| Overall Height | 8 in |
| Background Color | White |
| Housing Finish | UV Stabilized |
| Recommended Single Fixture Spacing | 18 ft |
| Maximum Operating Temperature | 104 deg F |
| Manufacturers Warranty Length | 5 yr |
| Remote Capacity | 3 W |
| Series | QUANTUM |
| Text Height | 6 in |
| Battery Voltage | 9.6 V DC |
| Emergency Wattage | 3 W |
| Self Diagnostics | No |
| Text Size | 6 in High |
| CA Title 20 Compliant | Yes |
| Lamp Head Shape | Round |
| Remote Capable | Yes |
| Lamp Wattage | 4.3 W |
| Diagnostic Testing Function | Test Button |
| Compatible Remote Head | 6NCZ2, 6NCZ3, 6NCZ4, 6NCZ5, 6NCZ6, 6NCZ7, 6NCZ8, 6NCZ9 |
| Recommended Mounting Height | 7 ft 6 in |
| Lamp Head Location | Side |
| Lamp Head Light Source | LED |
| Minimum Operating Temperature | 50 deg F |
| Compliance Type | None |
| Current | 0.05 A |
| Emergency Battery Backup | Yes |
| Overall Depth | 2-1/2 in |
| Text Color | Red |
| Country of Origin (subject to change) | Viet Nam |
| Package Quantity | 1 |
