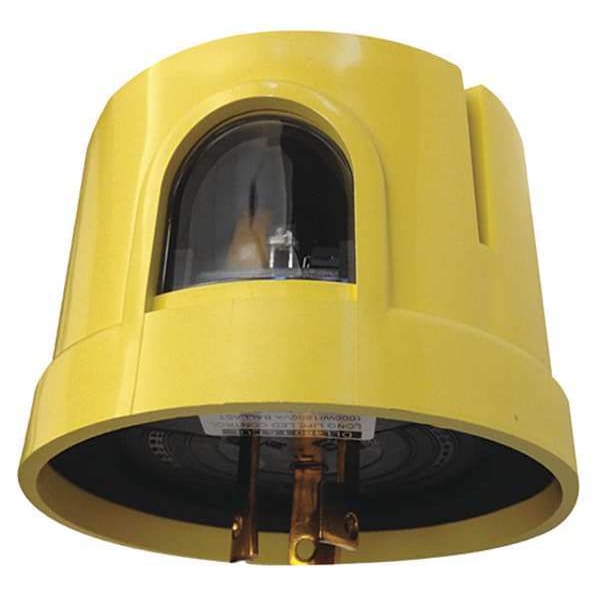

Botón de fotocontrol LED, 480V, 0.5W
| Item | LED Photocontrol Button |
|---|---|
| Mounting | Turn-Lock |
| For Use With | LED Fixture |
| Voltage | 480V AC |
| Max. Wattage | 1,000 |
| Max. Incandescent Amps | 8.3 A |
| Max. Ballast Amps | 15 A |
| Foot Candles On | 1.5 |
| Foot Candles Off | 2.25 |
| Color | Yellow |
| Temp. Range | -40 to 158 deg F |
| Housing Material | Polycarbonate |
| Depth | 2-9/16 in |
| Width | 3-1/4 in |
| Contact Form | SPDT |
| Enclosure Type | Raintight |
| Description/Special Features | LED Lighting Fixtures That Require Dusk to Dawn Control, LED Rated |
| Manufacturers Warranty Length | 20 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Setting | Dusk to Dawn |
| Standards | RoHS |
| Length | 3-1/4 in |
| Length (Straight Wireway) | 3-1/4 in |
| Series | DTL |
| Application Type | Automotive & Parking, Roadways, Bridges & Tunnels |
| Control Device Type | Photocell |
| Mounting Type | Fixture Attached |
| Housing Finish | Green |
| Package Quantity | 1 |
