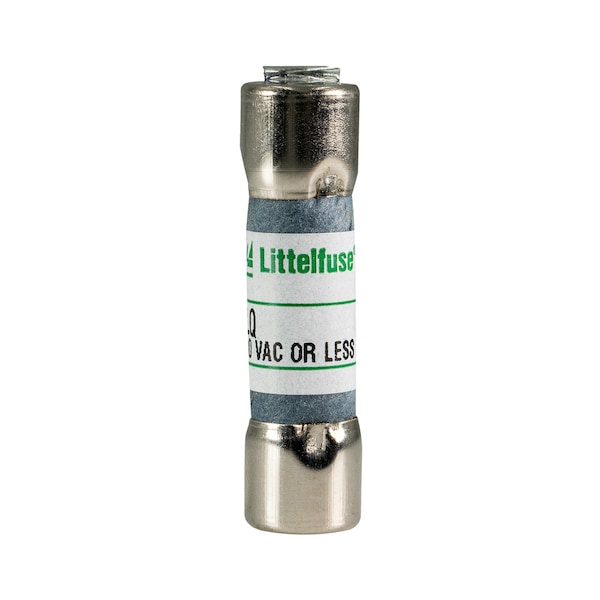

Midget Fuse, FLQ Series, Time-Delay, 20A, 500V AC, Non-Indicating, 10kA at 500VAC
| CAD Available | Yes |
|---|---|
| Series | FLQ |
| Speed | Time Delay |
| Amps | 20A |
| AC Voltage Rating | 500V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 500VAC |
| Body Style | Cylindrical |

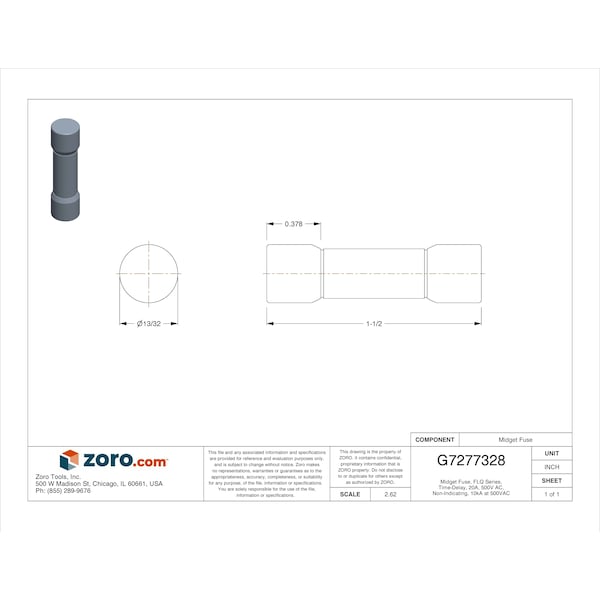

| Diameter | 13/32 in |
| Length | 1-1/2 in |
| Body Material | Melamine |
| Equivalent Brand and Series | Bussmann FNQ, Littelfuse FLQ, Power First HC10S, Mersen ATQ |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | L600M |
| DC Voltage Rating | 300V DC |
| Item | Midget Fuse |
| Element | Single |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Functionally Equal To | Bussmann FNQ, Mersen/Ferraz Shawmut ATQ |
| Class | Midget |
| Standards | UL Listed, CSA Certified, RoHS |
| Equivalent Series | ATQ, FLQ, FNQ, HC10S |
| Opening | Slo-Blo/Time Lag (T)/Time Delay |
| Package Quantity | 1 |
