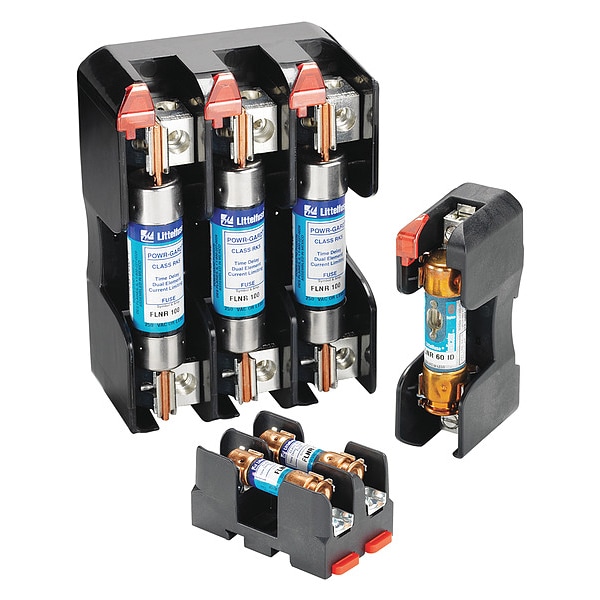

Open Fuse Block, 201 to 400A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug
| Item | Open Fuse Block |
|---|---|
| UL Class | R |
| Series | LFR |
| Number of Poles | 1 |
| Amp Range | 201 to 400A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Class R |
| Width | 3.32 in |
| Fits Fuse Type | Industrial |
| Features | Clip Designs Maximize Electrical Contact and Minimize Heat Rise |
| Height | 14-1/2 in |
| Length | 3-1/2 in |
| Wire Range | 1/0 AWG to 350 MCM |
| Fits Fuse Block Style | Rejection |
| Package Quantity | 1 |
