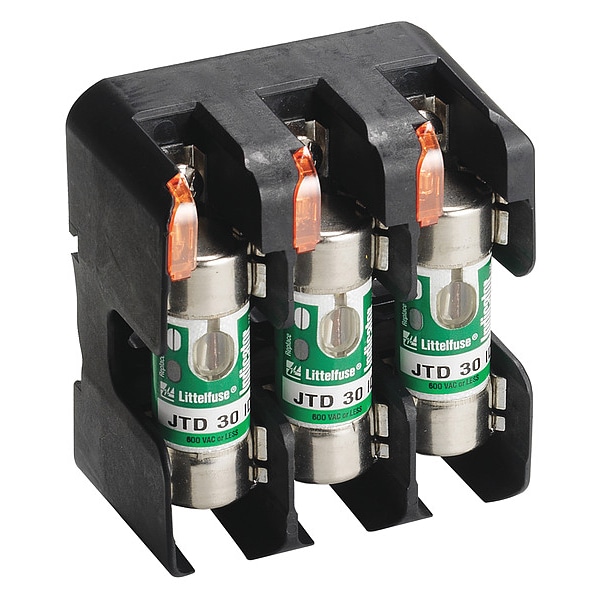

Open Fuse Block, J UL Class, 600V AC/DC Volt Rating, 3 Poles, Box Lug
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | LFJ |
| Number of Poles | 3 |
| Amp Range | 101 to 200A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Length | 8 in |
| Width | 2.85 in |
| Fits Fuse Type | Industrial |
| Standards | UL94 V-0, UL Listed, CSA Certified, RoHS Compliant, Lead (Pb) Free, REACH Compliant |
| Features | Phenolic Blocks Have Side Barriers for Isolation |
| Fuse Type | Class J |
| Wire Range | 6 AWG to 250 MCM |
| Height | 6.13 in |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
