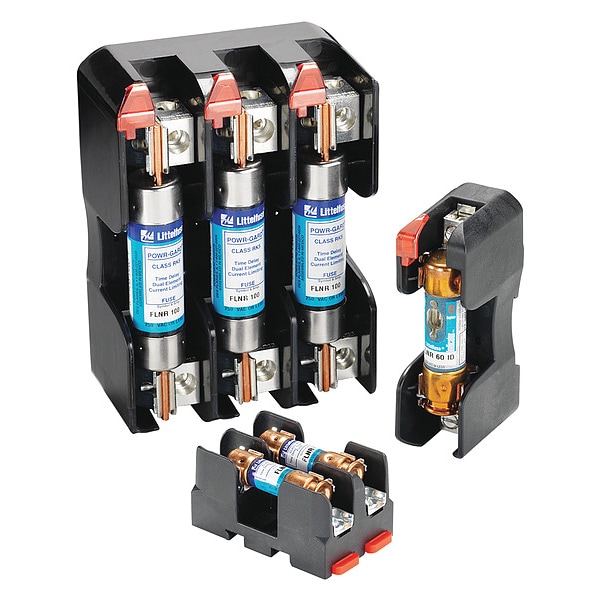

Open Fuse Block, R UL Class, 1 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | R |
| Series | LFR |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 14 AWG to 6 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 2.07 in |
| Length | 1.51 in |
| Height | 6.56 in |
| Standards | UL94 V-0, UL Listed, CSA Certified, RoHS Compliant, Lead (Pb) Free |
| For Fuse Size | 5 in L x 13/16 in dia |
| Fits Fuse Type | Industrial |
| Features | Clip Designs Maximize Electrical Contact and Minimize Heat Rise |
| Fits Fuse Block Style | Rejection |
| Package Quantity | 1 |
