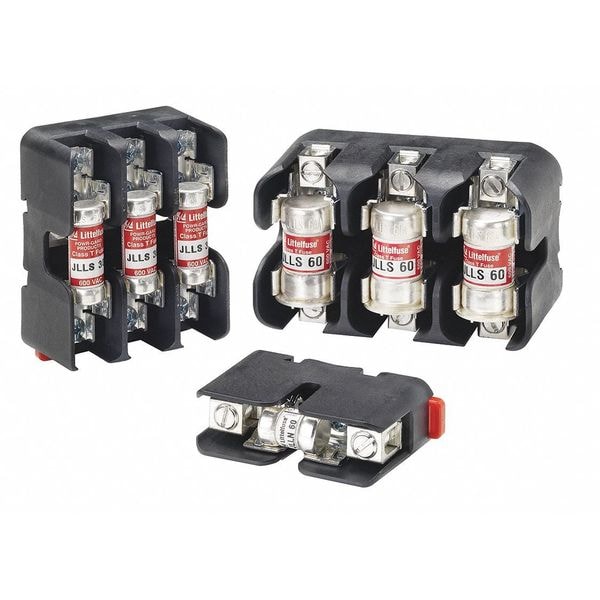

Open Fuse Block, T UL Class, 3 Poles, 31 to 60A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | T |
| Series | LFT |
| Number of Poles | 3 |
| Amp Range | 31 to 60A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | Yes |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Length | 4.42 in |
| Width | 2.13 in |
| Fuse Type | Industrial |
| For Fuse Series | JLLS |
| Standards | CSA Certified, RoHS, UL Listed |
| Features | Spacing Saving Design, Universal Mounting Holes for Easy Replacement |
| For Fuse Size | 1-9/16 in L x 13/16 in dia |
| Height | 2.85 in |
| Fits Fuse Type | Industrial |
| Wire Range | 14 AWG to 6 AWG, 4 AWG to 2 AWG |
| Fits Fuse Block Style | Rejection |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Package Quantity | 1 |
