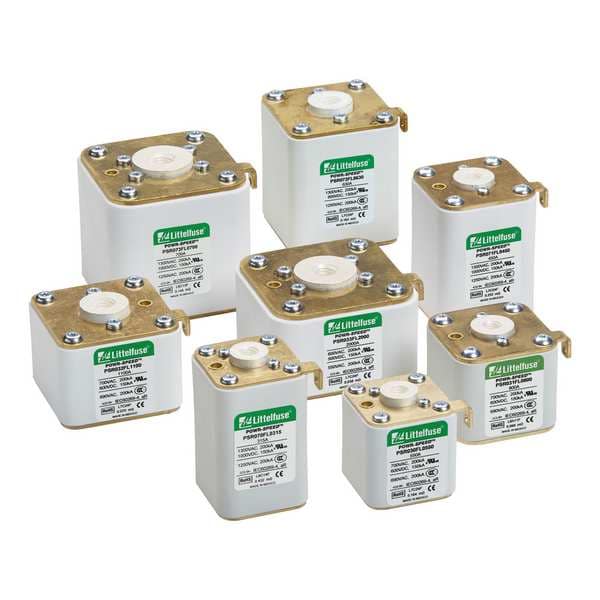

Semiconductor Fuse, PSR Series, 400A, Very Fast-Acting, 1300V AC, Square
| Item | Semiconductor Fuse |
|---|---|
| Series | PSR |
| Amps | 400A |
| Speed | Very Fast-Acting |
| AC Voltage Rating | 1300V AC |
| DC Voltage Rating | 1000V DC |
| Body Style | Square |
| Visual Indication | Indicating |
| Interrupt Rating | 100kA at 1300V AC |
| Body Material | Ceramic |
| Diameter | 4.21 in |
| Length | 2-15/16 in |
| Equivalent Series | PSR |
| Compatible Fuse Block Series | MS |
| Standards | CCC Certified, CE, RoHS Compliant, UL Recognized |
| Width | 2.89 in |
| Interrupting Rating | 100 kA @ 1,300 Vac |
| Package Quantity | 1 |
