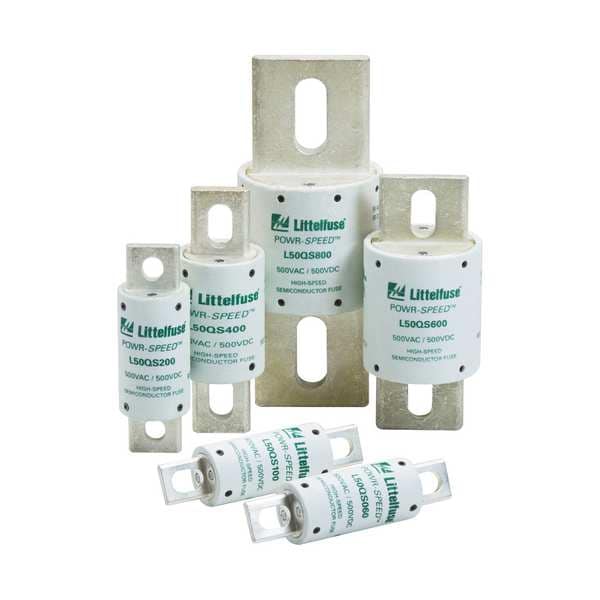

UL Class Fuse, aR Class, L50Q Series, Very Fast-Acting, 400A, 500V AC, Non-Indicating
| Class | aR |
|---|---|
| Series | L50Q |
| Speed | Very Fast-Acting |
| Amps | 400A |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | 500V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 500V AC, 20kA at 500V DC |
| Body Style | Cylindrical |
| Body Material | Melamine |
| Length | 4.343 in |
| Diameter | 1-1/2 in |
| Equivalent Series | A50P, A50Q, FWH, L50S |
| Compatible Fuse Block Series | LSCR |
| Item | UL Class Fuse |
| Standards | REACH, RoHS Compliant |
| Width | 1-1/2 in |
| Package Quantity | 1 |
