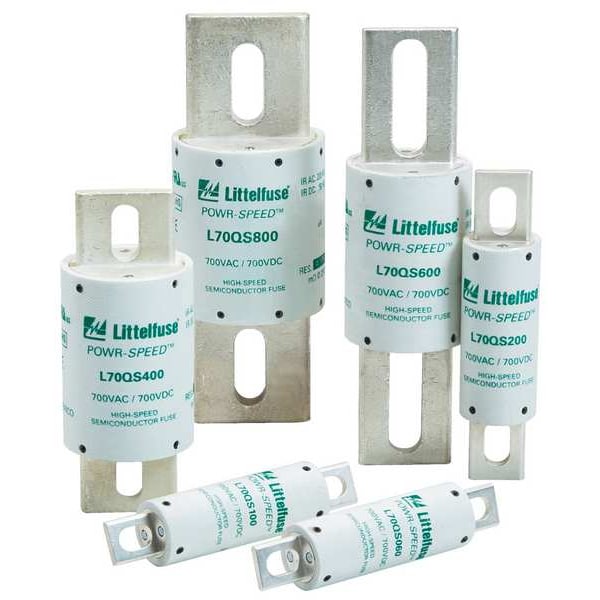

UL Class Fuse, aR Class, L70QS Series, Very Fast-Acting, 150A, 700V AC, Non-Indicating
| Class | aR |
|---|---|
| Series | L70QS |
| Speed | Very Fast-Acting |
| Amps | 150A |
| AC Voltage Rating | 700V AC |
| DC Voltage Rating | 700V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 700V AC, 50kA at 700V DC |
| Body Style | Bolt-On |
| Body Material | Melamine |
| Length | 5-3/32 in |
| Diameter | 1-7/32 in |
| Equivalent Series | A701P, A70QS, FWP, L70QS |
| Compatible Fuse Block Series | LSCR |
| Item | UL Class Fuse |
| Width | 1.218 in |
| Standards | cURus, UL Recognized |
| Package Quantity | 1 |
