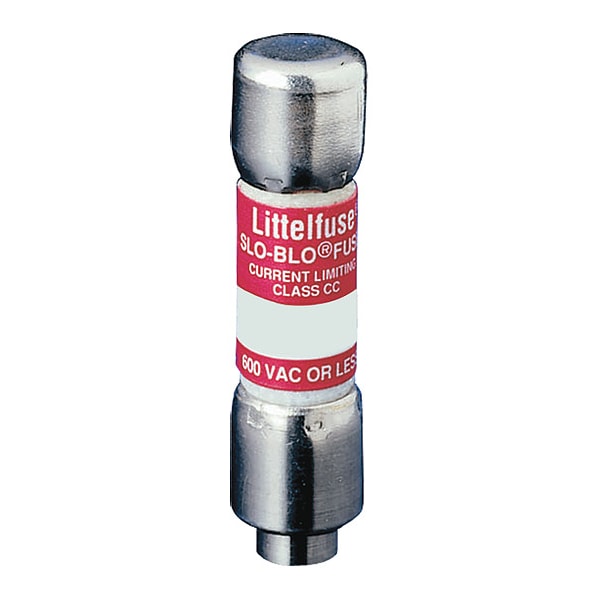

UL Class Fuse, CC Class, KLDR Series, Time-Delay, 2A, 600V AC, Non-Indicating
| Class | CC |
|---|---|
| Series | KLDR |
| Speed | Time-Delay |
| Amps | 2A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC, 20kA at 300V DC |
| Body Style | Cylindrical |
| Body Material | Melamine |
| Length | 1-1/2 in |
| Diameter | 13/32 in |
| Equivalent Brand and Series | Bussmann FNQ-R, Littelfuse KLDR, Mersen ATQR |
| Equivalent Series | ATQR, FNQ-R, KLDR |
| Fits Fuse Block Style | Rejection |
| Compatible Fuse Block Series | L600C |
| Item | UL Class Fuse |
| Rejection / Nonrejection | Rejection |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Standards | CE, UL 248-4, UL Listed, CSA Certified, RoHS |
| Fuse Speed | Time Delay |
| Element | Dual |
| Fuse Size (Lg x Dia) | 1 1/2 in x 13/32 in |
| Length (Straight Wireway) | 1-1/2 in |
| Size | Class CC |
| Package Quantity | 1 |
