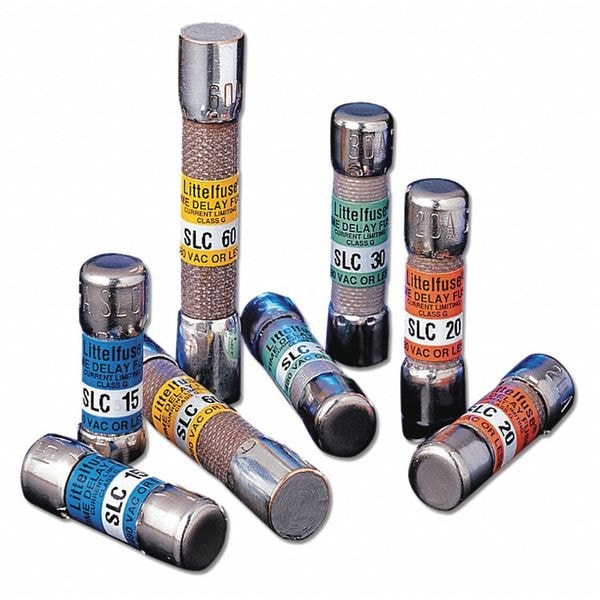

UL Class Fuse, G Class, SLC Series, Time-Delay, 20A, 600V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Class | G |
| Series | SLC |
| Speed | Time-Delay |
| Amps | 20A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 170V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 600V AC, 10kA at 170V DC |
| Body Style | Cylindrical |
| Body Material | Melamine |

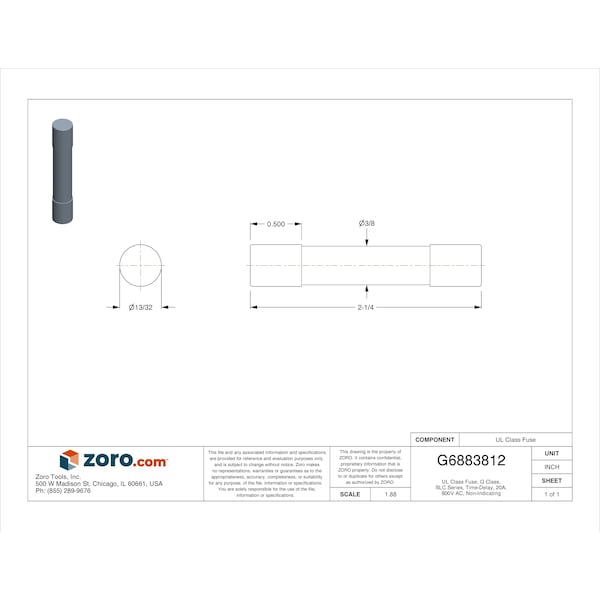

| Length | 1-13/32 in |
| Diameter | 13/32 in |
| Equivalent Brand and Series | Bussmann SC, Littelfuse SLC, Mersen AG |
| Equivalent Series | AG, SC, SLC |
| Fits Fuse Block Style | Rejection |
| Compatible Fuse Block Series | GFB |
| Item | UL Class Fuse |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Standards | CE, UL 248-5 Class G, UL Listed, CSA Certified, QPL-W-F-1814, RoHS |
| Functionally Equal To | Bussmann SC, Mersen/Ferraz Shawmut AG |
| Element | Single |
| Nominal Cold Resistance (Ohms) | 0.0057 |
| Opening | Medium-Acting/Medium, Time Lag/Medium Time Delay |
| Package Quantity | 1 |
