UL Class Fuse, J Class, JTD Series, Time-Delay, 100A, 600V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Class | J |
| Series | JTD |
| Speed | Time-Delay |
| Amps | 100A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC, 20kA at 300V DC |
| Body Style | Blade |
| Body Material | Melamine |

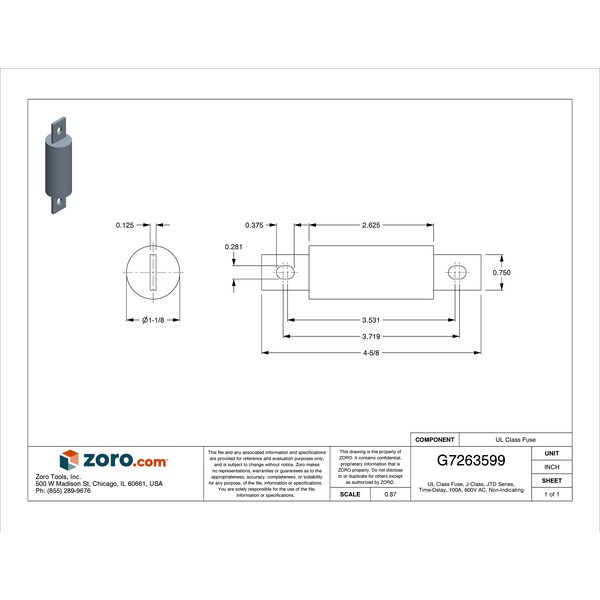

| Length | 4-5/8 in |
| Diameter | 1-1/8 in |
| Equivalent Brand and Series | Bussmann LPJ, Littelfuse JTD, Mersen AJT |
| Equivalent Series | AJT, JTD, LPJ |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | LFJ |
| Item | UL Class Fuse |
| Functionally Equal To | Bussmann LPJ |
| Standards | CE, UL 248-8 Class J, UL Listed, CSA Certified |
| Depth | Not Applicable |
| Element | Dual |
| Products By Industry | Electrical |
| Opening | Slo-Blo/Time Lag /Time Delay |
| Package Quantity | 1 |
