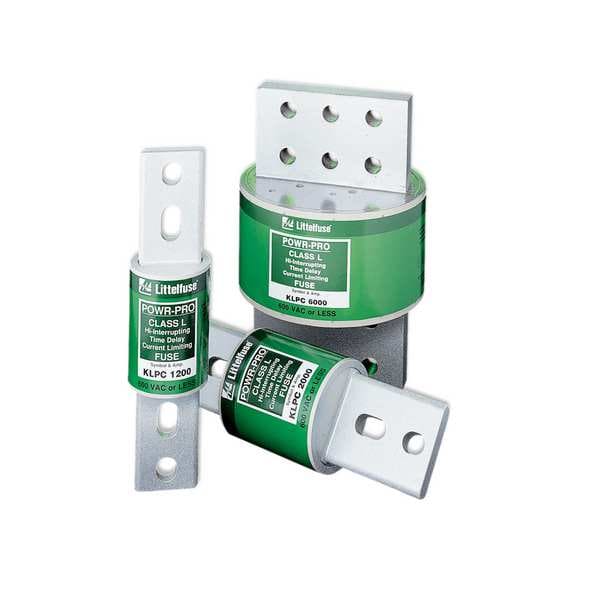

UL Class Fuse, L Class, KLPC Series, Time-Delay, 600A, 600V AC, Non-Indicating
| Class | L |
|---|---|
| Series | KLPC |
| Speed | Time-Delay |
| Amps | 600A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 480V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC, 20kA at 480V DC |
| Body Style | Bolt-On |
| Body Material | Melamine |
| Length | 8-5/8 in |
| Diameter | 2-1/2 in |
| Equivalent Brand and Series | Littlefuse KLPC |
| Equivalent Series | A4BY, KLLU, KLPC, KLU, KTU |
| Item | UL Class Fuse |
| Standards | CE, UL |
| Package Quantity | 1 |
