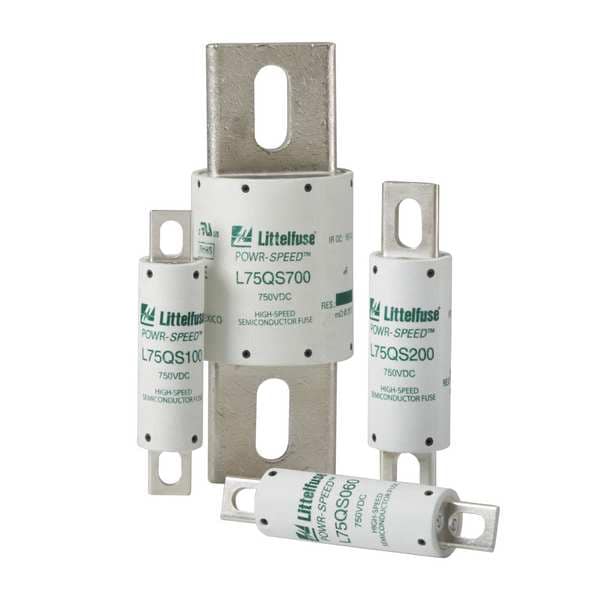

UL Class Fuse, L75QS Series, Very Fast-Acting, 100A, Not Rated, Non-Indicating
| Series | L75QS |
|---|---|
| Speed | Very Fast-Acting |
| Amps | 100A |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 750V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 50kA at 750V DC |
| Body Style | Bolt-On |
| Body Material | Melamine |
| Length | 4-3/8 in |
| Diameter | 1 in |
| Equivalent Series | L75QS |
| Compatible Fuse Block Series | LSCR |
| Item | UL Class Fuse |
| Width | 1 in |
| Standards | cURus, UL Recognized |
| Package Quantity | 1 |
