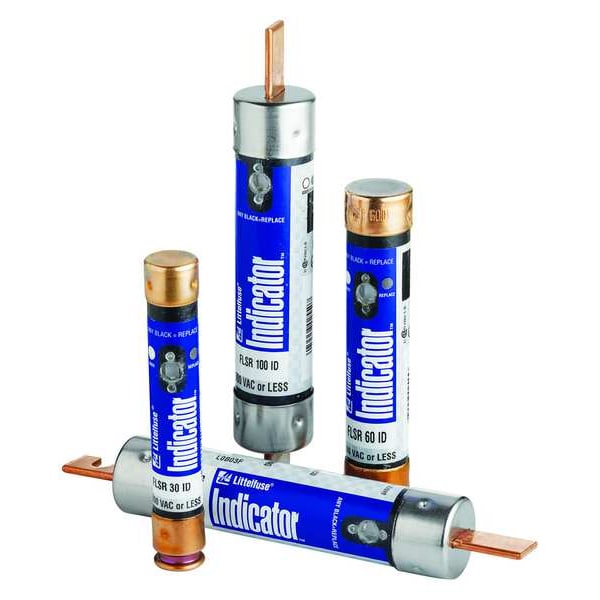

UL Class Fuse, RK5 Class, FLSR Series, Time-Delay, 100A, 600V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Class | RK5 |
| Series | FLSR |
| Speed | Time-Delay |
| Amps | 100A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC, 20kA at 300V DC |
| Body Style | Blade |
| Body Material | Fiberglass |

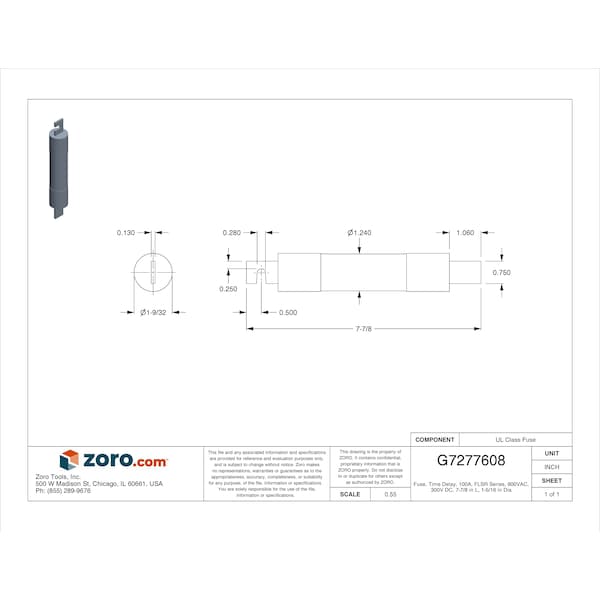

| Length | 7-7/8 in |
| Diameter | 1.28 in |
| Equivalent Brand and Series | Bussmann FRS-R, Edison ECSR, Littelfuse FLSR, Mersen TRS-R |
| Equivalent Series | ECSR, FLSR, FRS-R, TRS-R |
| Fits Fuse Block Style | Rejection |
| Compatible Fuse Block Series | LFR |
| Item | UL Class Fuse |
| Element | Dual |
| Functionally Equal To | Bussmann FRS-R, Edison ECSR, Mersen/Ferraz Shawmut TRS-R |
| Standards | CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814 |
| Opening | Slo-Blo/Time Lag /Time Delay |
| Package Quantity | 1 |
