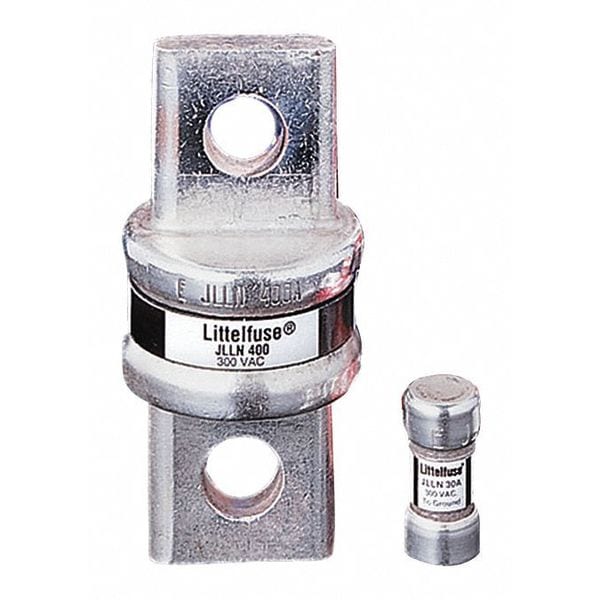

UL Class Fuse, T Class, JLLN Series, Fast-Acting, 100A, 300V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Class | T |
| Series | JLLN |
| Speed | Fast-Acting |
| Amps | 100A |
| AC Voltage Rating | 300V AC |
| DC Voltage Rating | 125V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 300V AC, 20kA at 125V DC |
| Body Style | Blade |
| Body Material | Melamine |
| Length | 2-5/32 in |
| Diameter | 0.812 in |
| Equivalent Brand and Series | Bussmann JJN, Edison TJN, Littelfuse JLLN, Mersen A3T |
| Equivalent Series | A3T, JJN, JLLN, TJN |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | LFT |
| Item | UL Class Fuse |
| Standards | CE, UL 248-15 Class T, UL Listed, CSA Certified, RoHS |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Rejection / Nonrejection | Nonrejection |
| Fuse Speed | Fast Acting |
| Element | Single |
| Length (Straight Wireway) | 2-5/32 in |
| Size | Knife-Blade/Bolt-In |
| Package Quantity | 1 |
