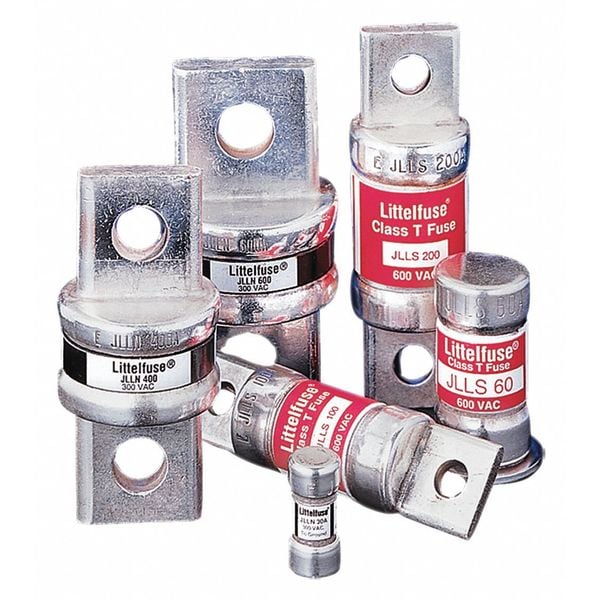

UL Class Fuse, T Class, JLLS Series, Fast-Acting, 150A, 600V AC, Non-Indicating
| CAD Available | Yes |
|---|---|
| Class | T |
| Series | JLLS |
| Speed | Fast-Acting |
| Amps | 150A |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | 300V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 600V AC, 20kA at 300V DC |
| Body Style | Blade |
| Body Material | Melamine |

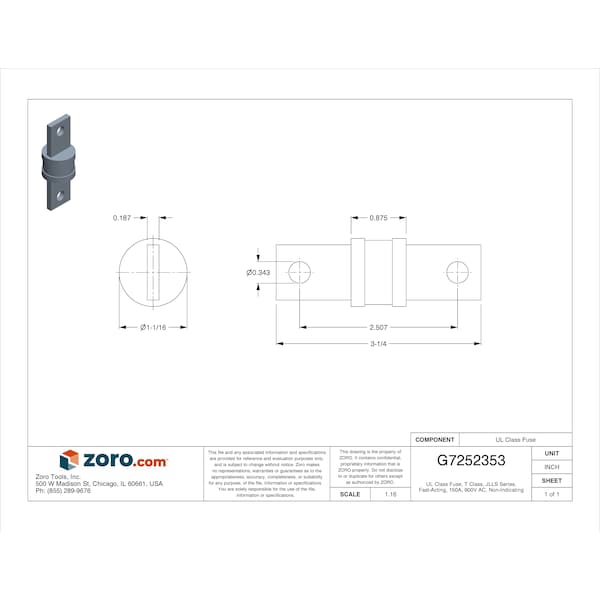

| Length | 3-1/4 in |
| Diameter | 1.078 in |
| Equivalent Brand and Series | Bussmann JJS, Littelfuse JLLS, Mersen A6T |
| Equivalent Series | A6T, JJS, JLLS |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | LFT |
| Item | UL Class Fuse |
| Element | Single |
| Standards | CE, UL 248-15 Class T, UL Listed, CSA Certified, RoHS |
| Rejection / Nonrejection | Nonrejection |
| Fuse Speed | Fast Acting |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Length (Straight Wireway) | 3.0714 in |
| Size | Knife-Blade/Bolt-In |
| Package Quantity | 1 |
