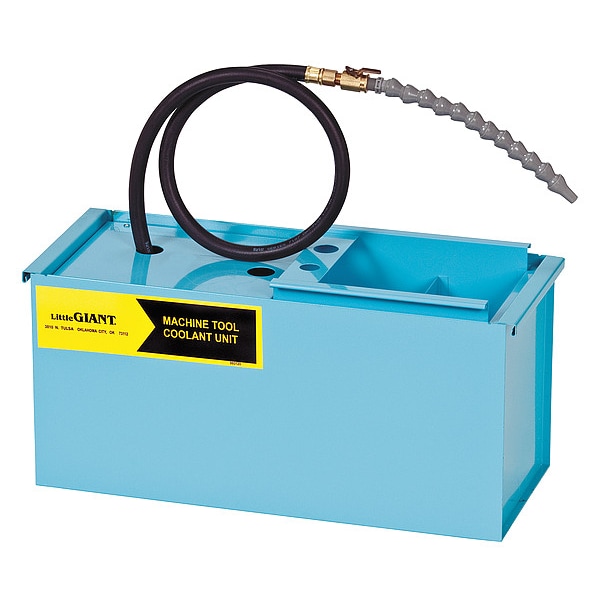

Coolant Pump/Tank, 10 G
| Item | Machine Coolant Recirculating Tank System |
|---|---|
| HP | 1/15 |
| Voltage | 115 V |
| Inlet/Outlet (In.) | 1/2 |
| Tank (Gal.) | 10 |
| GPH of 50 SSU @ 12 Ft. of Head | 80 |
| GPH of 100 SSU @ 3 Ft. of Head | 133 |
| GPH of 300 SSU @ 6 Ft. of Head | 93 |
| GPH of 50 SSU @ 6 Ft. of Head | 182 |
| GPH of 100 SSU @ 6 Ft. of Head | 123 |
| Amps | 3.2 |
| Length (In.) | 10 |
| GPH of 100 SSU @ 12 Ft. of Head | 105 |
| Type | Steel Tank |
| GPH of 300 SSU @ 1 Ft. of Head | 108 |
| GPH of 300 SSU @ 12 Ft. of Head | 80 |
| GPM of Water @ 10 Ft. of Head | 3.5 |
| GPH of 300 SSU @ 3 Ft. of Head | 100 |
| GPH of 50 SSU @ Shut off (Ft.) | 22.4 |
| Shut-Off (Ft.) | 17.3 |
| Max. Recommended Viscosity | 300 SUS |
| GPH of 50 SSU @ 1 Ft. of Head | 197 |
| GPM of Water @ 1 Ft. of Head | 8.3 |
| GPH of 50 SSU @ 3 Ft. of Head | 192 |
| GPH of 300 SSU @ Shut off (Ft.) | 15.7 |
| GPM of Water @ 5 Ft. of Head | 5.6 |
| Width (In.) | 25 |
| GPH of 100 SSU @ Shut off (Ft.) | 16.8 |
| GPH of 100 SSU @ 1 Ft. of Head | 139 |
| Features | Fan Cooled, Thermally Protected 1/50 HP, 115V Motor and a 4 Feet. 3-conductor Cord with Molded Plug |
| Max. Temp. | 120 Degrees F |
| Includes | 1P323, 2P345 |
| Pump | Submersible Centrifugal |
| GPM of Water @ 3 Ft. of Head | 7.25 |
| Height (In.) | 11-3/8 |
| Flow Rate - Maximum | 500 gph |
| Coolant Hose Material | Neoprene |
| Includes Chip Collector | Chip Collector Included |
| Tank Material | Steel |
| Coolant Hose Length | 6 ft |
| Nozzle Material | Metal |
| Tank Capacity | 10 gal |
| Control Valve Material | Brass |
| Impeller Material | Nylon |
| Includes Baffle Plate | Baffle Plate Included |
| Horsepower | 1/15 hp |
| Viscosity - Maximum | 300 SUS |
| Package Quantity | 1 |
