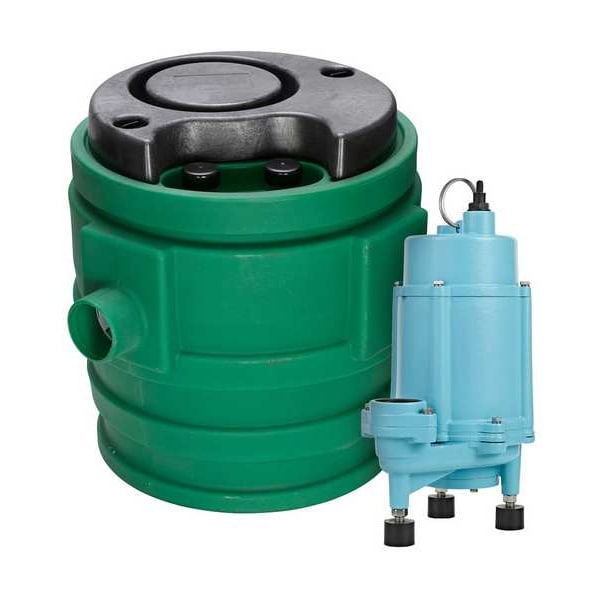

Bomba de trituración, Monofásica, 12.5A, 3450 RPM.
| Item | Grinder Pump Systems |
|---|---|
| Shaft Seal Material - Pumps | Nitrile, Silicon Carbide |
| Phase - Pumps | Single |
| Flow Rate @ 20 Ft. of Head | 43.9 gpm |
| Flow Rate @ 10 Ft. of Head | 49.3 gpm |
| HP | 1 HP |
| Switch Actuation | Tether Float |
| On Point | 9 in |
| Manufacturers Warranty Length | 36 mo |
| Max. Diameter Solids | 2 in |
| RPM | 3,450 RPM |
| Cord Length | 20 ft |
| Hz | 60 Hz |
| Duty Cycle | Continuous |
| Impeller Material | Cast Iron |
| Switch Electrical Connection | Piggyback |
| Off Point | 2 in |
| Max. Liquid Temp. | 140 Degrees F |
| Amps | 12.5 |
| Max. Head | 51 ft |
| Agency Compliance | cULus |
| Rated Voltage | 115V AC |
| Basin Dia. | 24 in |
| Inlet | 4 in |
| Inlet Dia. | 4 in |
| Basin Height | 24 in |
| Pump Body Material | Cast Iron |
| Alarm Included | No |
| Vent Size | 2 in |
| Flow Rate @ 30 Ft. of Head | 37.5 gpm |
| Basin Material | HDPE |
| Number of Pumps | 1 |
| Package Quantity | 1 |
