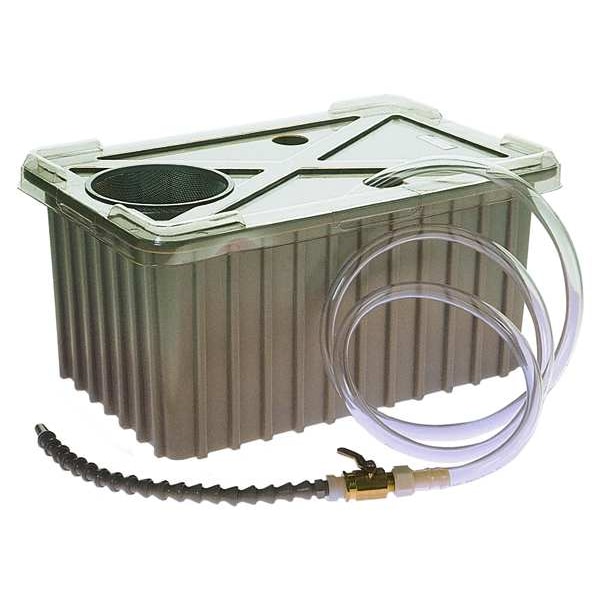

Machine Coolant Recirculating Tank System, 115 V, 5 gal
| Item | Machine Coolant Recirculating Tank System |
|---|---|
| HP | 1/150 |
| Voltage | 115 V |
| Inlet/Outlet (In.) | 1/4 |
| Tank (Gal.) | 5 |
| GPM of Water @ 3 Ft. of Head | 2.8 |
| GPH of 50 SSU @ 6 Ft. of Head | 36 |
| Features | Fan Cooled, Thermally Protected 1/50 HP, 115V Motor and a 4 Feet. 3-conductor Cord with Molded Plug |
| GPH of 100 SSU @ 3 Ft. of Head | 14 |
| GPH of 50 SSU @ Shut off (Ft.) | 7.4 |
| GPH of 50 SSU @ 1 Ft. of Head | 72 |
| Shut-Off (Ft.) | 7.5 |
| Length (In.) | 11 |
| Amps | 1.1 |
| Width (In.) | 15-1/2 |
| GPH of 100 SSU @ Shut off (Ft.) | 3.5 |
| Max. Temp. | 120 Degrees F |
| Includes | 1P929, 2P344 |
| GPM of Water @ 5 Ft. of Head | 2 |
| Height (In.) | 8 |
| GPH of 100 SSU @ 1 Ft. of Head | 24 |
| Max. Recommended Viscosity | 100 SUS |
| GPH of 50 SSU @ 3 Ft. of Head | 60 |
| GPH of 100 SSU @ 6 Ft. of Head | 6 |
| GPM of Water @ 1 Ft. of Head | 3.4 |
| Type | Polyethylene Tank |
| Pump | Submersible Centrifugal |
| Includes Chip Collector | Chip Collector Included |
| Includes Baffle Plate | Baffle Plate Included |
| Tank Material | Polyethylene |
| Nozzle Material | Metal |
| Coolant Hose Material | Plastic |
| Horsepower | 1/50 hp |
| Tank Capacity | 5 gal |
| Impeller Material | Nylon |
| Control Valve Material | Brass |
| Flow Rate - Maximum | 205 gph |
| Viscosity - Maximum | 100 SUS |
| Coolant Hose Length | 6 ft |
| Package Quantity | 1 |
