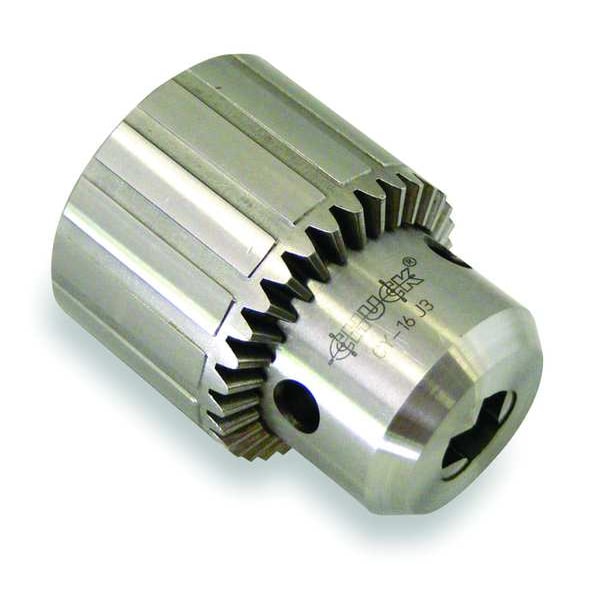

Keyed Drill Chuck 1.000" Cap., 5JT Mount Size, Steel
| Item | Drill Chuck |
|---|---|
| Chuck Type | Keyed |
| Material | Steel |
| Bearing Type | Ball |
| Capacity Max. | 1 in |
| Capacity Min. | 0.38 in |
| Mounting Size | JT5 |
| Includes | Chuck Key |
| Nominal Capacity | 1 in |
| Key Number | K5 |
| Mounting Type | Jacobs Taper |
| Features | CBB Components are Hardened and Ground, Ball Bearings Reduce Friction in the Tightening Mechanism and Provide a Better Grip on the Drill Shaft, One-piece Gear Ring and Sleeve Eliminate the possibility of Tooth Breakage |
| Application | Industrial |
| Material - Machining | High Speed Steel |
| Overall Length | 5.787 in |
| Keying | Keyed |
| For Use With | Electric Portable Drilling Machines |
| Max. Drill Capacity | 1 in |
| Min. Drill Capacity | 13/64 in |
| Product Type | Drill Chuck |
| Type | Heavy Duty |
| Finish | Hardened |
| Includes Key | Key Included |
| Turn Direction | CW, CCW |
| Compatible Tool Type | Electric Portable Drilling Machines |
| Series | CBB |
| Includes Sleeve | Sleeve Included |
| Compatible Drill Diameter - Minimum | 13/64 in |
| Jacobs Taper Drive Type | Standard Drive |
| Compatible Drill Diameter - Maximum | 1 in |
| Package Quantity | 1 |
