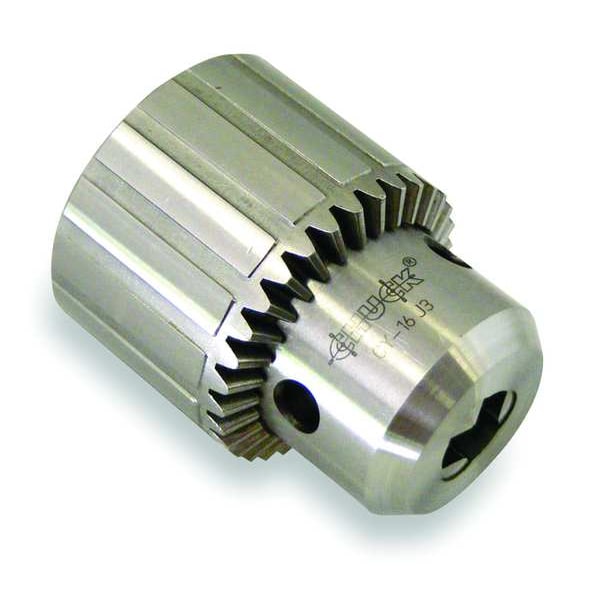

Keyed Drill Chuck 5/8" Cap., 3JT Mount Size, Steel
| Item | Drill Chuck |
|---|---|
| Chuck Type | Keyed |
| Material | Steel |
| Bearing Type | Plain |
| Capacity Max. | 5/8 in |
| Capacity Min. | 1/8 in |
| Mounting Size | JT3 |
| Nominal Capacity | 5/8 in |
| Key Number | K3 |
| Mounting Type | Jacobs Taper |
| Includes | Chuck Key |
| Max. Drill Capacity | 5/8 in |
| For Use With | Milling and Woodworking Machines, Stationary Drilling Machines, Turning |
| Min. Drill Capacity | 1/32 in |
| Material - Machining | High Speed Steel |
| Keying | Keyed |
| Application | Electric Portable Drilling Machines |
| Overall Length | 3.74 in |
| Features | One-piece Gear Ring and Sleeve Eliminate the possibility of Tooth Breakage |
| Product Type | Drill Chuck |
| Type | Heavy Duty |
| Series | CY |
| Includes Sleeve | Sleeve Included |
| Jacobs Taper Drive Type | Standard Drive |
| Duty Rating | Medium |
| Includes Key | Key Included |
| Turn Direction | CW, CCW |
| Compatible Tool Type | Stationary Drilling Machines |
| Compatible Drill Diameter - Maximum | 5/8 in |
| Compatible Drill Diameter - Minimum | 1/32 in |
| Finish | Hardened |
| Package Quantity | 1 |
