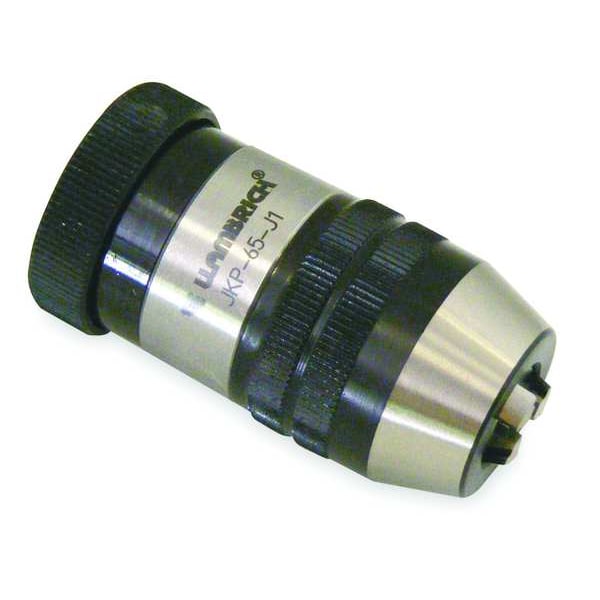

Keyless High Precision Drill Chuck 0.118" Cap., 5/16-24 Mount Size
| Item | Drill Chuck |
|---|---|
| Chuck Type | High Precision |
| Material | Steel |
| Bearing Type | Ball |
| Capacity Max. | 0.118 in |
| Capacity Min. | 0 in |
| Mounting Size | 5/16"-24 |
| Mounting Type | Threaded |
| Application | Drill Presses With High Accuracy, Jig Bore Machines, Mills Where The Application Requires Higher Feed Rates |
| Overall Length | 1.87 in |
| Features | Self-Tightening Mechanism Automatically Increases the Grip in Proportion to the Increase in Torque During Drilling |
| Keying | Keyless |
| Max. Drill Capacity | 1/64 in |
| Min. Drill Capacity | 1/8 in |
| Material - Machining | High Speed Steel |
| For Use With | High-Accuracy Drill Presses, Jig Borers, Milling Machines and Production Drilling Equipment |
| Product Type | Drill Chuck |
| Type | High Precision |
| Compatible Tool Type | High-Accuracy Drill Presses, Jig Borers, Milling Machines and Production Drilling Equipment |
| Series | JKP |
| Compatible Drill Diameter - Minimum | 1/8 in |
| Finish | Hardened |
| Compatible Drill Diameter - Maximum | 1/64 in |
| Includes Key | Key Not Included |
| Package Quantity | 1 |
