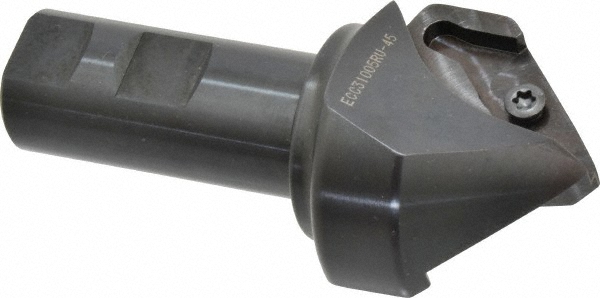

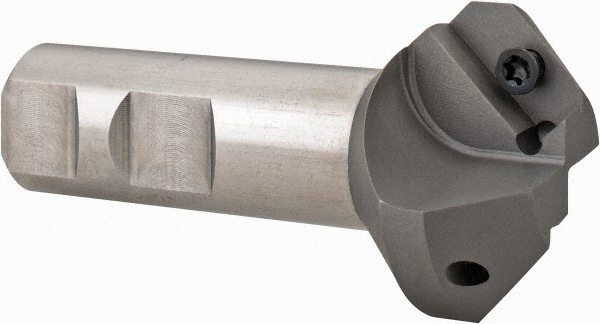

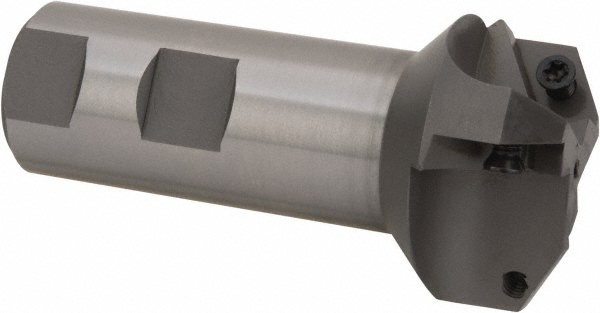

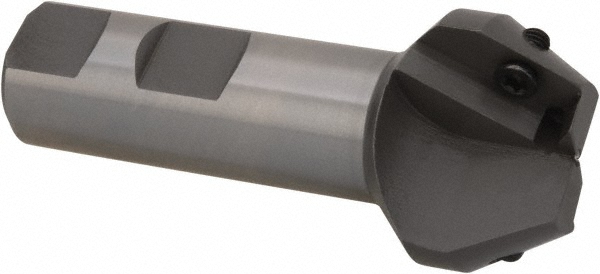

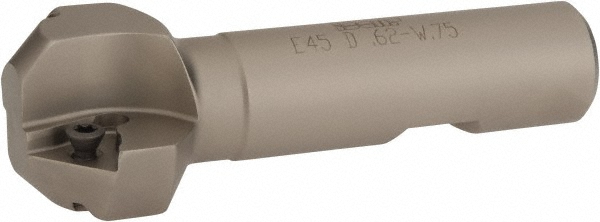

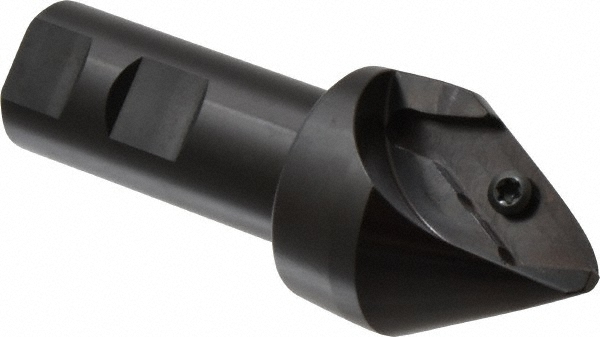

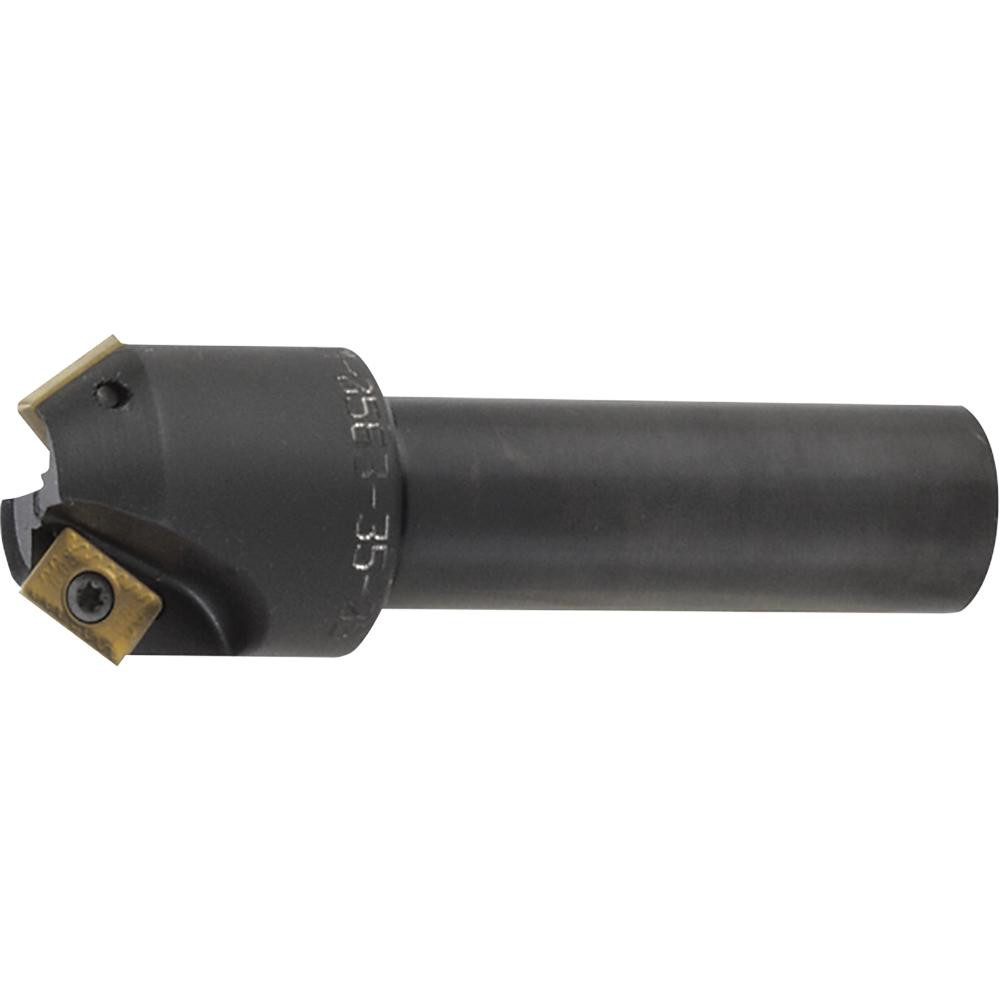

Takes 2 Inserts, TCMT 16T304 Insert Style, EFZ Toolholder, 3.74" OAL
| Cutting Diameter (Decimal Inch) | 0.4100 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.4100 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |

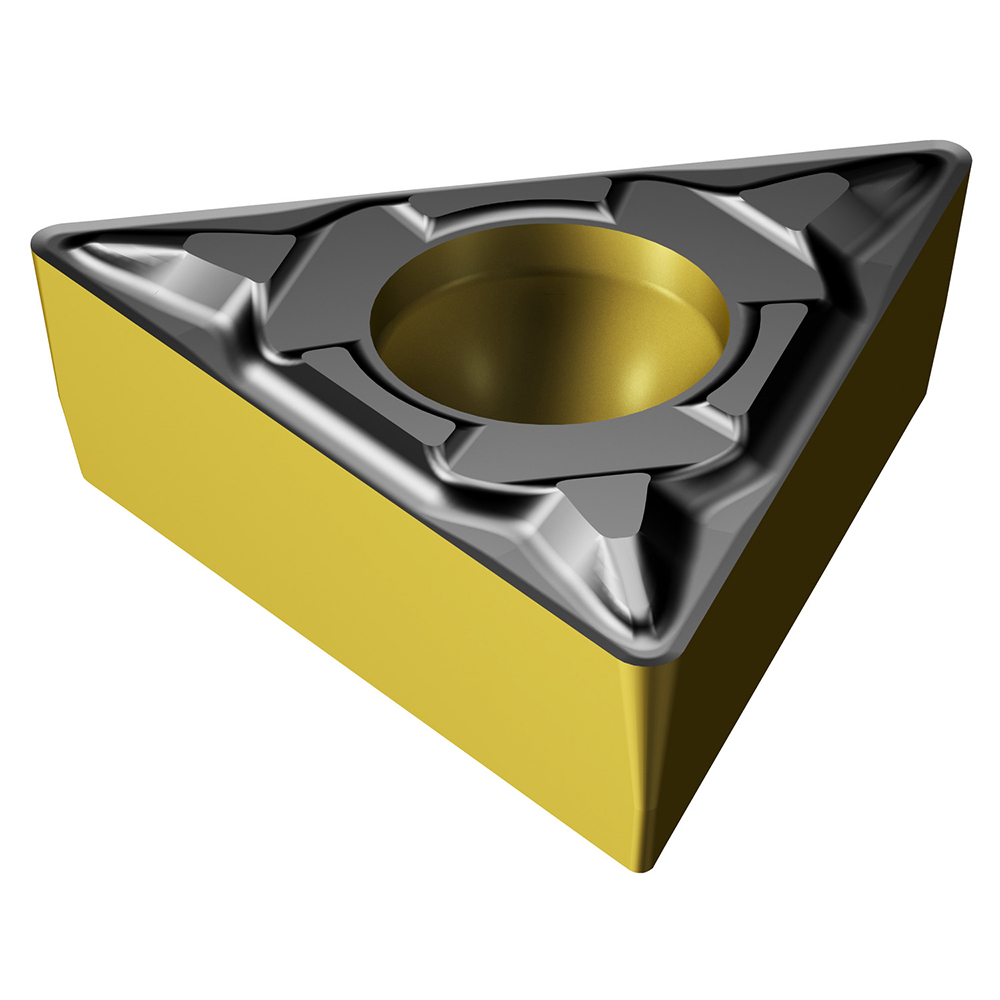

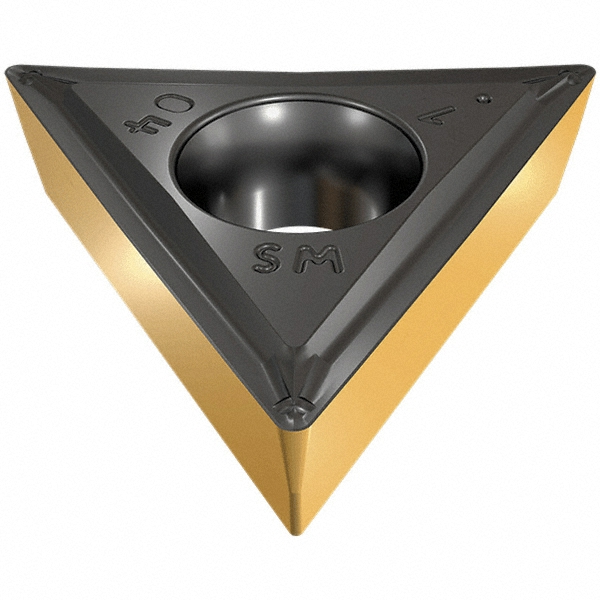

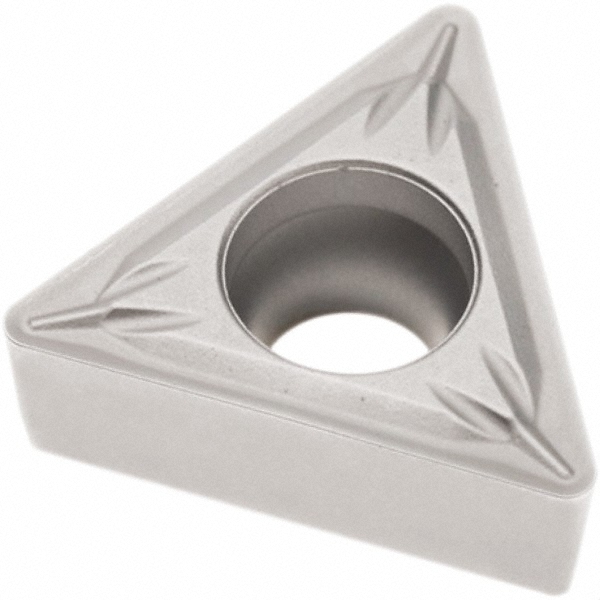

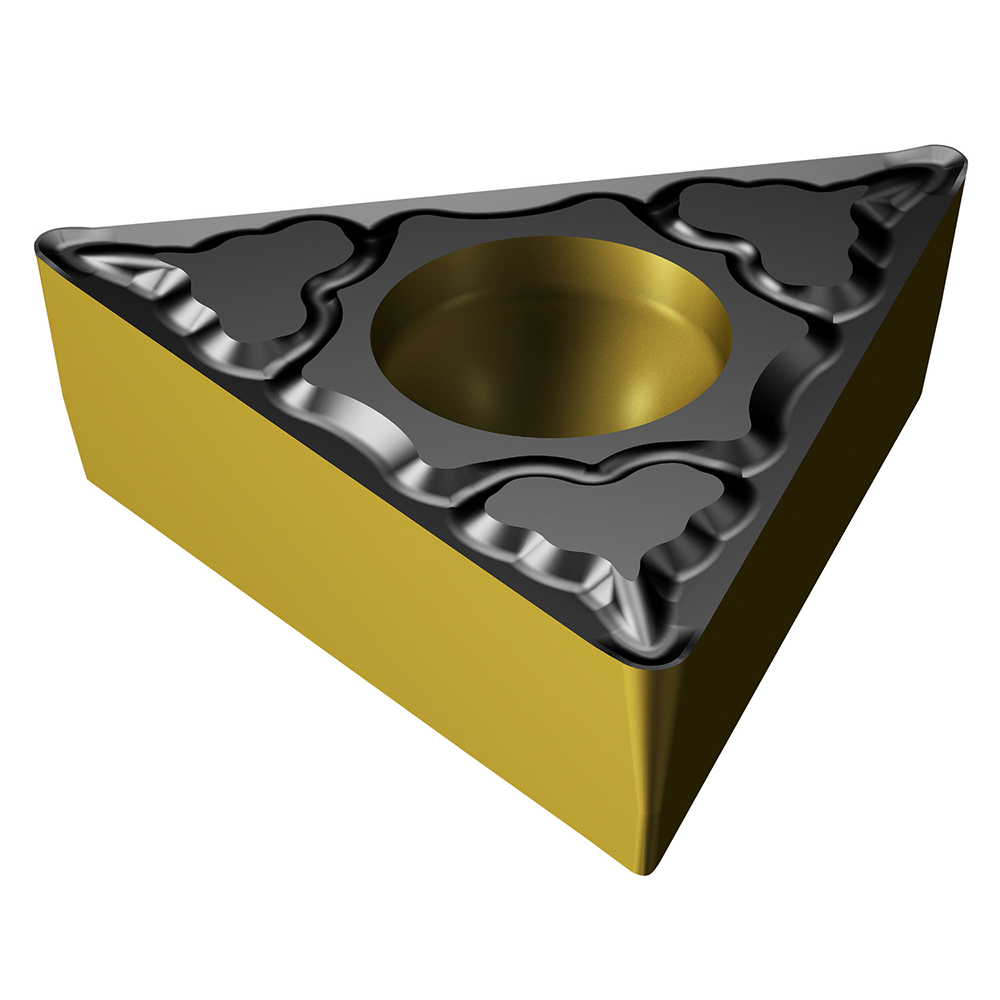

| Compatible Insert Size Code | TCMT 16T304 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number Of Cutter Inserts | 2 |
| Insert Style | TCMT 16T304 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.7400 |
| Series | EFZ45/60 |
| Toolholder Style | EFZ |
| Maximum Body Diameter (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.2600 |
| Shank Length (Decimal Inch) | 2.4800 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Axial Rake Angle (Degrees) | 12 to 15 |
| Shank Type | Weldon Flat |
| Country of Origin | Germany |
| MSC Number | MSC# 42711812 |
