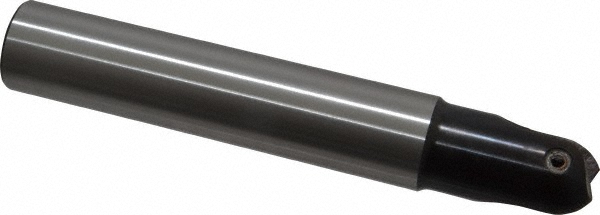

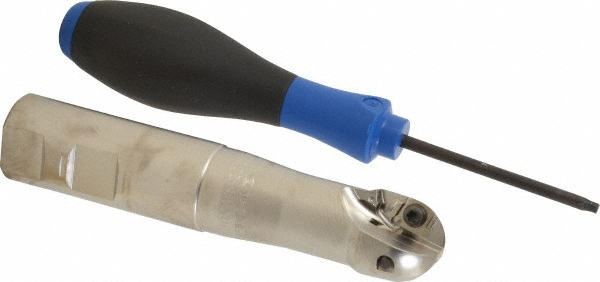

Uses (1) WPR 1000 Insert, 1" Straight Shank
| Cutting Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Tool Material | High-Speed Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.7700 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Inch - 0 Decimals) | 1.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | WPR 1000 |
| Toolholder Style | EBG-R |
| Tapered Neck | No |
| Overall Length (Decimal Inch) | 6.3000 |
| Series | EBG |
| Head Length (Decimal Inch) | 1.7700 |
| Tool Application | Milling |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.8800 |
| Cutting Diameter (Inch) | 1 |
| Number of Ball Nose Inserts | 1 |
| Number Of Inserts | 1 |
| UNSPSC Code | 27112803 |
| Country of Origin | Germany |
| MSC Number | MSC# 56445992 |
