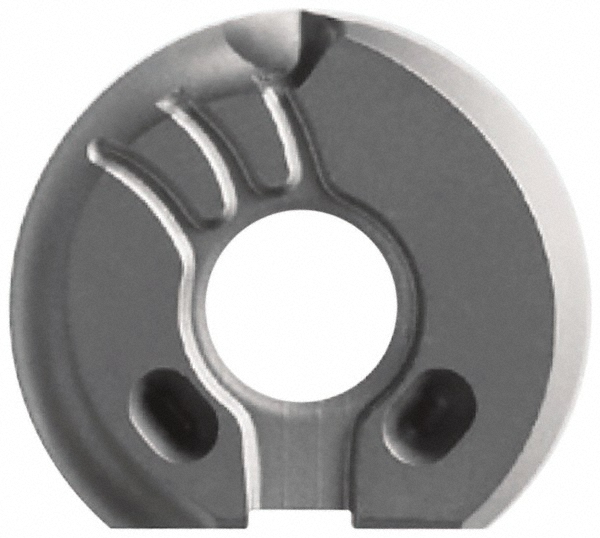

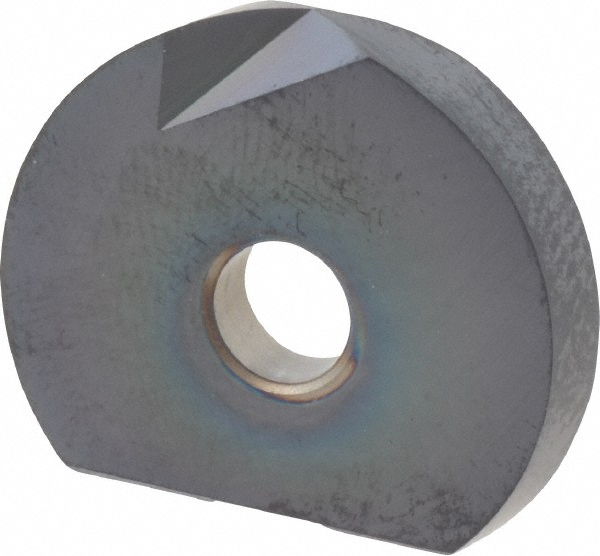

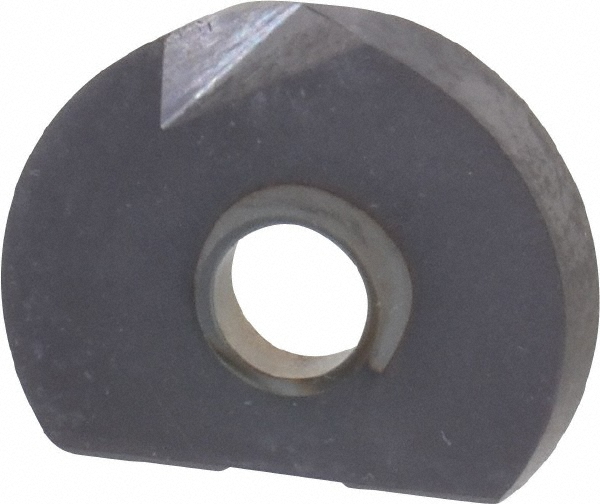

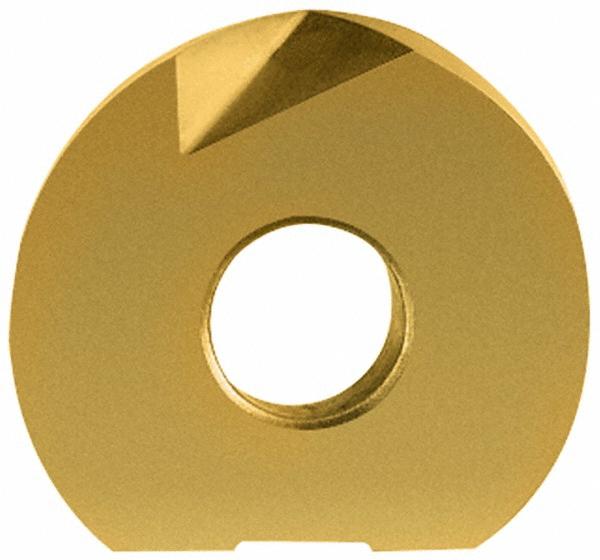

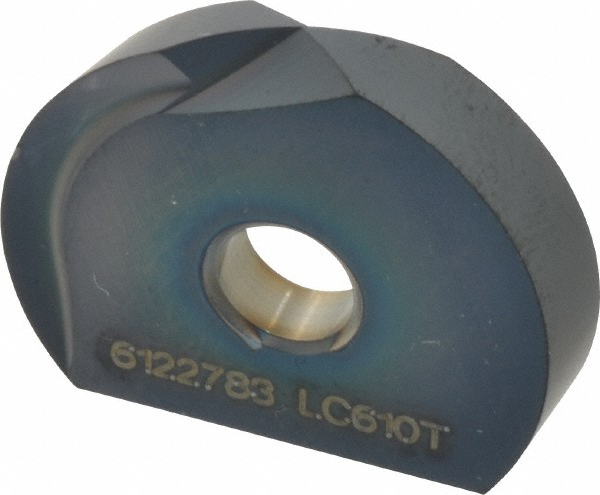

TiAlN & TiN Finish, 4.06 mm Thick, 25.40 mm Wide
| Insert Style | WPR |
|---|---|
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose Rounded Tip |
| Manufacturer Grade | LC610T |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1600 |
| Thickness (mm) | 4.06 |
| Coating/Finish | TiN; TiAlN |
| Insert Size Code | 1000 |
| Material Grade | C3; C2 |
| Width (Inch) | 1 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (mm) | 25.40 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 1.0000+ |
| Insert Hand | Right Hand |
| Series | WPR |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 10.0000 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | WPR 1000-N LC610T |
| Iso Code | WPR 1000-N LC610T |
| Standards | ISO |
| Manufacturers Catalog Number | 6122860 |
| Chip Breaker | N |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (mm - 2 Decimals) | 25.40 |
| Multi-Use Tool | No |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 56446081 |
