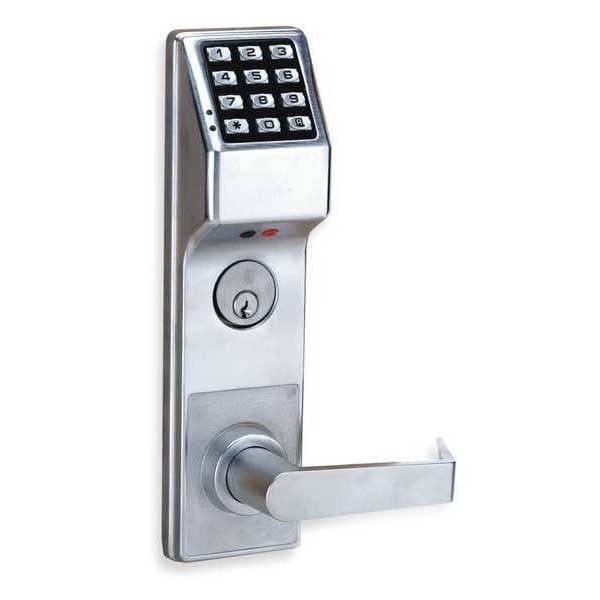

Electronic Lock, Brushed Chrome, 12 Button
| Item | Electronic Keyless Lock |
|---|---|
| Handle Type | Lever |
| Function | Classroom with Key Override |
| Key Override Options | Standard SC1 Keyway |
| Hand | Left |
| Finish | Satin Chrome |
| Door Thickness | 1-3/8 to 1-7/8 in |
| Keypad | 12 Button |
| Backset | 2 3/4 in |
| Electrical/Mechanical | Electrical |
| Product Type | Electronic Keyless Lock |
| Lockset Function | Classroom |
| Latch Length | 1/2 in |
| Outside Width | 3 in |
| Case Material | Zinc |
| Outside Depth | 3 in |
| Weather Resistant | Yes |
| Max. User Codes | 300 |
| Series | DL3500 |
| Timed Entry Allowance | 3 to 15 sec |
| Battery Life | 75,000 Cycles |
| Outside Height | 11 in |
| Number of Keys | 0 |
| Mounting Style | Mortise |
| Operating Temp. Range | -31 to 151 deg F |
| Lock Material | Zinc Alloy |
| For Use With | ALPCI2-U, Mfr. No. AL-DTMIII |
| Fire Rating | 3 hr |
| Access Method | Proximity |
| Includes | Software CD |
| Standards | UL Listed |
| Event Audit Trail | 40,000 |
| Power Source | (5) AA Batteries |
| Ligature Resistant | No |
| Material | Zinc Alloy |
| Keypad Material | Metal |
| Voltage | 5.5-9 VDC |
| Overall Height | 11 in |
| Overall Width | 3 in |
| Overall Depth | 3 in |
| Temperature - Minimum | -31 deg F |
| Compatible Manufacturer Model Number | AL-DTMIII, ALPCI2-U |
| Lockset Material | Zinc Alloy |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Temperature - Maximum | 151 deg F |
| Compatible Brand | Alarm Lock |
| Lever Style | Clutch |
| User Codes - Maximum | 300 |
| Hand Orientation | Non-Handed |
| Lockset Handle Type | Lever |
| Door Thickness - Minimum | 1 5/8 in |
| Door Thickness - Maximum | 1-7/8 in |
| Event Audit Trails | 40,000 |
| Lockset Type | Electrical |
| Strike Type | Mortise |
| Country of Origin (subject to change) | Dominican Republic |
| Package Quantity | 1 |
