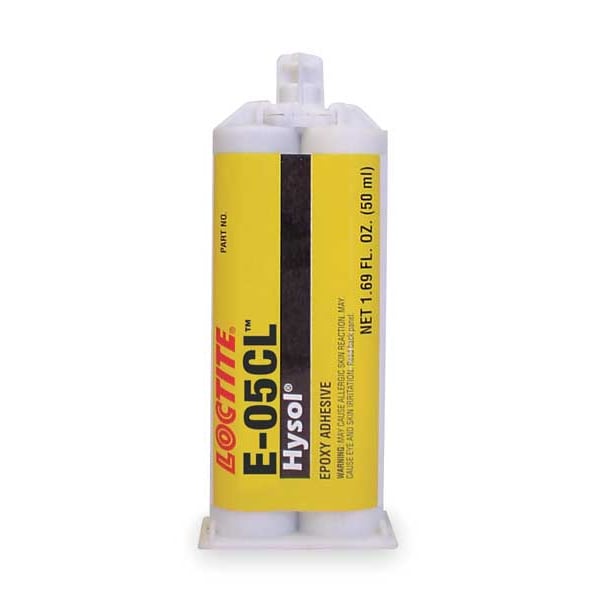

Epoxy Adhesive, E-05CL Series, Clear, Dual-Cartridge, 1:01 Mix Ratio, 30 min Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Type | Low Odor, High Peel, Fast Fixture |
| Application | Fast Fixture, High Peel, Low Odor |
| Color | Clear |
| For Use On | Metal, Plastic |
| Container Type | Dual-Cartridge |
| Functional Cure | 30 min |
| Full Cure | 24 hr |
| Mixing Ratio | 1:01 |
| Shear Strength | 1,430 psi |
| Temp. Range | -65 to 180 deg F |
| Working Time | 3 min |
| Series | E-05CL |
| Shear Strength (PSI) | 1,430 |
| Epoxy Max. Temp | 250 to 299 deg F |
| Epoxy Color | Clear |
| Temp. Range (F) | -65 to 180 |
| Size | 1.69 fl oz |
| Work Life | 3 min |
| Epoxy Container | Dual-Cartridge |
| Structural Adhesive Type | Epoxy Adhesive |
| Features | Electrically Insulating, Fast-Setting, Industrial Grade, Medium Viscosity |
| Standards | ASTM D1002 |
| Includes | Resin and Hardener |
| Application Method | Two-Part Dispenser |
| Resin Type | Epoxy |
| Hardener Color | Clear |
| Maximum Viscosity | 2,250 cps |
| Alternate Product Name | EA E-05CL |
| Tensile Strength | 270 psi |
| Maximum Performance Temperature | 180 deg F |
| Cured Color | Clear |
| Water Resistance | Not Water-Resistant |
| Primary Applications | General Purpose |
| Materials Bonded | Ceramic, Concrete, Glass, Masonry, Metal, Plastic, Rubber, Wood |
| Full Cure Time | 24 hr |
| Marine Grade | No |
| Interior/Exterior | Interior Only |
| Compatible Applicator (Grainger Part Number) | 3NVL4 |
| Hardness at Full Cure | 55 Shore D |
| Total Volume | 50 mL |
| Cure Method | Ambient |
| Resin Color | Clear |
| VOC Content Weight | Less than 10 g/L |
| Minimum Performance Temperature | -65 deg F |
| Low Odor | Yes |
| VOC Content Weight Percentage | Less Than 1% |
| Included Components | Hardener, Resin |
| Non-Sagging | No |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
